Kia EV6: Controls and features

Contents:

• Fingerprint authentication system : (if equipped)
• Welcome system
• Interior lights
• Automatic climate control system
• Switching between panels
• Controlling the vents
• Temperature conversion
• External air intake
• Heating operation tips
• A/C system operation tips
• Defroster
• Windshield defrosting and defogging
• To cancel or reset the Automatic Ventilation
• Turning A/C Automatic Drying on or off
• Storage compartments
• Interior features
• Temperature control (Manual)
• Charging wireless smart phone
• Audio system
• Switching between panels
• FM reception
• Declaration of conformity

Fingerprint authentication system : (if equipped) ➤

Welcome system

The Kia EV6 welcome system automatically illuminates selected exterior and interior lighting functions when the driver approaches, unlocks, enters, or exits the vehicle.

This feature improves convenience, nighttime visibility, and premium cabin ambiance while approaching or leaving the Kia EV6.

Headlight (Headlamp) escort function: (if equipped)

The Kia EV6 headlights and/or taillights remain illuminated for approximately 5 minutes after the vehicle is switched OFF.

If the driver’s door is opened and closed, the headlights automatically turn OFF after approximately 15 seconds.

The escort lighting function can be canceled manually by pressing the lock button on the smart key twice or by turning the light switch from the headlight or AUTO position to OFF.

Interior light

When the interior light switch is in the DOOR position and all doors and the liftgate are fully closed and locked, the Kia EV6 room lamp illuminates for approximately 30 seconds under the following conditions:

• With the smart key system

  • You press the smart key door unlock button.

  • You press the button located on the outside door handle.

If the door lock button is pressed during this time, the interior lights turn OFF immediately.

Body silhouette lamp

When all doors are closed and locked, the Kia EV6 body silhouette lamp illuminates for approximately 15 seconds if any of the following actions occur:

• With the smart key system

  • You press the smart key door unlock button.

  • You approach the Kia EV6 while carrying the smart key within approximately 5 ft (1.5 m) of the vehicle.

  • You press the button located on the outside door handle.

If the lock button is pressed during this period, the body silhouette lamp turns OFF immediately.

If the welcome mirror/light settings are disabled within the infotainment system or if the liftgate remains open, the body silhouette lamp will not operate.

Interior lights ➤

Automatic climate control system ➤

Switching between panels ➤

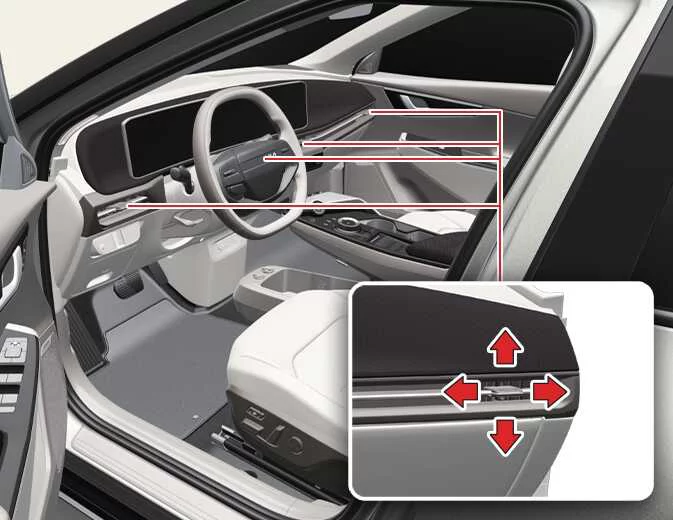

Controlling the vents

The Kia EV6 ventilation outlets can be opened or closed by moving the vent adjustment control left or right.

You can also adjust the direction of air delivery by moving the vent control lever as illustrated.

Temperature control

The Kia EV6 cabin temperature increases to the maximum setting (HI) when the temperature control knob is rotated fully to the right.

The temperature decreases to the minimum setting (LO) when the temperature control knob is rotated fully to the left.

Each adjustment changes the Kia EV6 temperature setting by 1 °F (0.5 °C in Celsius mode).

When the lowest temperature setting is selected, the Kia EV6 air conditioning system operates continuously to maintain maximum cooling performance.

NOTE

Temperature conversion

You can switch the Kia EV6 temperature display mode between Fahrenheit and Celsius as follows:

Select Setup > Units > Temperature within the infotainment system menu.

For additional information, refer to the separately supplied Kia EV6 infotainment system manual.

TIP

Controlling air intake

Select either external fresh air intake or recirculated cabin air mode.

To change the Kia EV6 air intake control position:

• Press the air intake control button.

External air intake ➤

Heating operation tips

• To prevent dust, smoke, or unpleasant outside odors from entering the Kia EV6 cabin, temporarily switch the air intake control to recirculation mode. After the air quality improves, return the system to Fresh Air mode to maintain a comfortable cabin environment and help keep the driver alert.

• Air for the Kia EV6 heating and cooling system enters through the intake grilles located in front of the windshield. Ensure these openings are not blocked by snow, leaves, ice, or other debris.

• To reduce interior windshield fogging, operate the Kia EV6 climate system in Fresh Air mode, adjust the fan speed appropriately, activate the air conditioning system, and select the desired cabin temperature.

Air conditioning

Kia EV6 air conditioning systems are filled with environmentally friendly R-1234yf refrigerant.

1. Start the Kia EV6 and press the A/C button.

2. Set the airflow mode to the () position.

3. Select either external fresh air mode or recirculated air mode.

4. Adjust the Kia EV6 fan speed and cabin temperature as desired.

   • For maximum cooling performance, rotate the temperature control fully to the left and set the fan speed to the highest level.

CAUTION

CAUTION

A/C system operation tips ➤

Defroster ➤

Windshield defrosting and defogging ➤

To cancel or reset the Automatic Ventilation ➤

Turning A/C Automatic Drying on or off

The Kia EV6 A/C Automatic Drying feature can be activated or deactivated by selecting Setup > Climate > Climate Features > A/C Automatic Drying within the infotainment system menu.

For additional information, refer to the Kia EV6 infotainment system manual and quick reference guide.

When the Kia EV6 A/C Automatic Drying feature operates, the climate system automatically:

• Sets the blower fan speed to level 3

• Selects the outside (fresh) air intake mode

• Directs airflow toward the floor area

Operating conditions

The Kia EV6 A/C Automatic Drying feature operates under the following conditions:

• The vehicle is switched OFF after the air conditioning system has been used for a certain period of time

• The 12-volt auxiliary battery charge level is sufficient

• The outside temperature is above a specified operating threshold

Non-operating conditions

The Kia EV6 A/C Automatic Drying feature stops operating under the following conditions:

• The automatic drying function has completed approximately 10 minutes of operation

• The EV button is pressed or the vehicle enters the POWER ON position

• The Kia EV6 climate control system is operated remotely

NOTE

TIP

Storage compartments ➤

Interior features ➤

Temperature control (Manual) ➤

Charging wireless smart phone ➤

Audio system ➤

Switching between panels ➤

FM reception

Radio transmitter towers located throughout urban and rural areas broadcast AM and FM radio signals that are received through the Kia EV6 roof-mounted antenna system.

The Kia EV6 audio system processes these incoming radio signals and delivers sound through the vehicle speakers for high-quality entertainment and communication.

However, under certain driving or environmental conditions, the radio signal received by the Kia EV6 may become weak, distorted, or temporarily unclear.

Signal quality may be affected by several factors, including the distance from the radio transmitter, interference from nearby radio stations, tunnels, bridges, mountains, tall buildings, parking structures, or other large obstacles surrounding the Kia EV6.

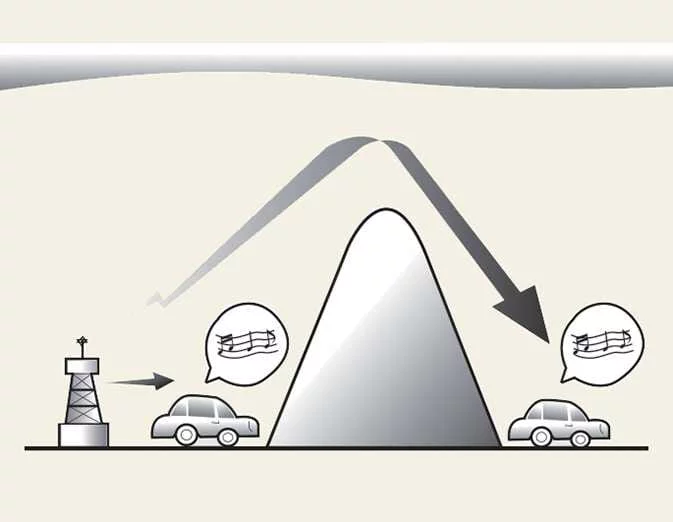

AM reception

AM radio broadcasts can generally be received over much greater distances than FM broadcasts. This is because AM radio waves operate at lower frequencies and travel differently compared to FM signals.

Low-frequency AM radio waves used by the Kia EV6 audio system can follow the curvature of the earth rather than traveling only in straight lines.

Additionally, AM signals can bend around certain obstacles, helping provide broader signal coverage and more reliable long-distance reception for the Kia EV6 radio system.

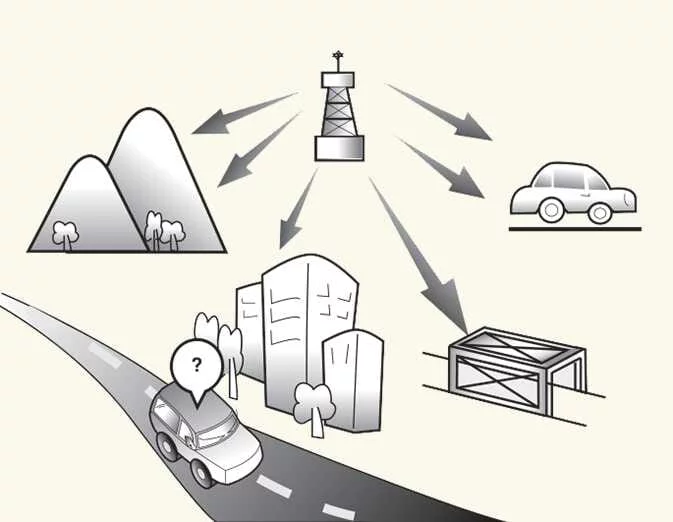

FM radio station

FM radio broadcasts operate at much higher frequencies and generally travel in straight-line patterns instead of following the earth’s surface.

Because of this characteristic, FM radio signals received by the Kia EV6 may begin to weaken at shorter distances from the transmitter tower.

FM signals are also more easily affected by mountains, tunnels, buildings, bridges, parking structures, and other large obstacles. These conditions may occasionally create temporary radio reception disturbances inside the Kia EV6 cabin.

The following conditions are considered normal Kia EV6 radio operating characteristics and do not indicate a malfunction of the audio system:

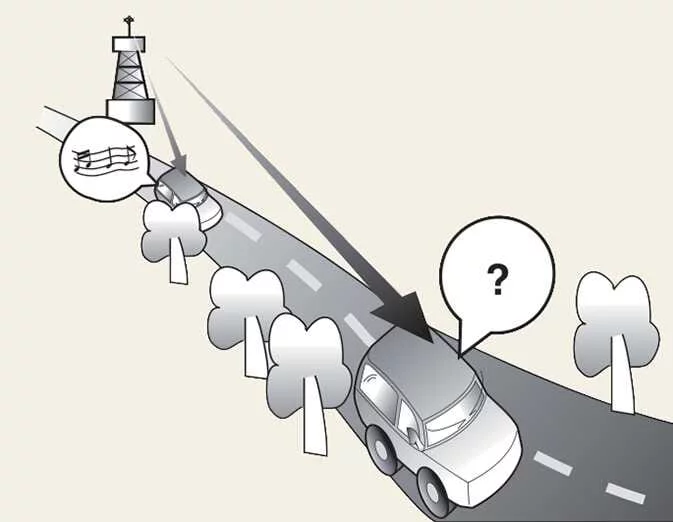

• Fading - As the Kia EV6 moves farther away from the selected FM radio station, the signal strength gradually weakens and the audio volume may begin to fade. If this occurs, select another radio station with a stronger signal.

• Flutter or static - Weak FM signals or large obstructions between the transmitter tower and the Kia EV6 antenna may create static noise, fluttering sounds, or signal interruptions. Reducing the treble level may help minimize the effect until signal conditions improve.

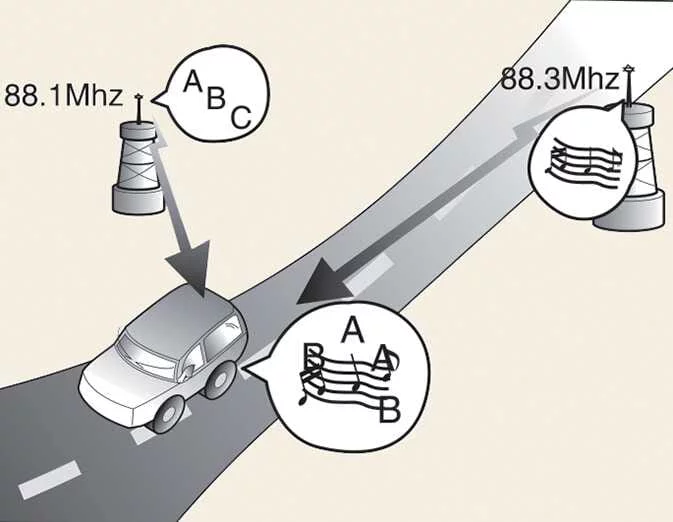

• Station swapping - As an FM signal becomes weaker, another stronger signal operating near the same frequency may begin to play automatically. This occurs because the Kia EV6 radio system is designed to lock onto the clearest available signal. If this situation occurs, select another station with stronger reception.

• Multi-path cancellation - Radio signals reaching the Kia EV6 antenna from multiple directions may cause temporary distortion or fluttering audio. This may happen because of reflected signals from buildings, mountains, or nearby structures, or from two stations transmitting on similar frequencies. If this occurs, switching to another station usually resolves the condition.

Using a mobile phone or a two-way radio

When a mobile phone is used inside the Kia EV6, electrical interference or audio noise may occasionally be heard through the vehicle speakers. This does not indicate a malfunction of the Kia EV6 audio system.

If interference occurs, operate the mobile device as far away from the Kia EV6 infotainment system and antenna components as possible.

When operating communication equipment such as mobile phones or two-way radios inside the Kia EV6, a separate external antenna should be used whenever possible.

Using communication equipment with only an internal antenna may interfere with the Kia EV6 electrical systems and could negatively affect safe vehicle operation.

WARNING

WARNING

Declaration of conformity

FCC

This Kia EV6 equipment has been tested and verified to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules.

These limits are intended to provide reasonable protection against harmful electronic interference in residential environments.

This Kia EV6 equipment generates, uses, and may radiate radio frequency energy. If not installed and operated according to the instructions provided, it may cause interference to radio communications or television reception.

However, there is no guarantee that interference will not occur in a particular installation or operating environment.

If the Kia EV6 equipment causes harmful interference to radio or television reception, which can be determined by switching the equipment OFF and ON, the user is encouraged to attempt correcting the interference using one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the Kia EV6 equipment and the receiver.

• Connect the Kia EV6 equipment to a power outlet on a different electrical circuit from the receiver.

• Consult an authorized Kia dealer or an experienced radio/television technician for additional assistance.

TIP
