Kia EV6 2022-2026 Owner's Manual / Controls and features / Temperature control (Manual)

Contents:

Each time the Kia EV6 seat warmer button is pressed, the seat temperature setting changes as follows:

Kia EV6 front seat warmer temperature level indicators — Figure 1. Front seat

Kia EV6 rear seat warmer temperature control display — Figure 2. Rear seat (if equipped)

The Kia EV6 seat warmer automatically returns to the OFF position whenever the vehicle is restarted.

Temperature control (Automatic)

The Kia EV6 seat warmer system automatically regulates seat temperature after manual activation to help prevent low-temperature burns and maintain comfortable heating levels.

Kia EV6 automatic heated seat temperature adjustment system — Figure 3. Front seat

You can manually press the Kia EV6 seat warmer button to increase the heating level. However, the system automatically returns to automatic temperature regulation mode shortly afterward.

Pressing and holding the Kia EV6 seat warmer button for more than 1.5 seconds while the system is operating switches the seat warmer OFF.

The Kia EV6 seat warmer defaults to the OFF position whenever the vehicle is placed in the ON position.

NOTE

When the Kia EV6 heated seat controls are in the ON position, the heating elements automatically switch ON and OFF depending on the current seat temperature.

WARNING

Seat Warmer Burns

The Kia EV6 seat warmer may cause burns, even at relatively low temperatures, if used continuously for long periods. Never allow passengers who may be unable to react quickly or adjust the controls themselves to remain exposed to heated seats for extended periods.

These individuals include:

Infants, children, elderly persons, disabled persons, or hospital outpatients

People with sensitive skin or those who burn easily

Fatigued or sleeping individuals

Intoxicated individuals

Individuals taking medication that may cause drowsiness or reduced awareness, such as sleeping pills or cold medicine

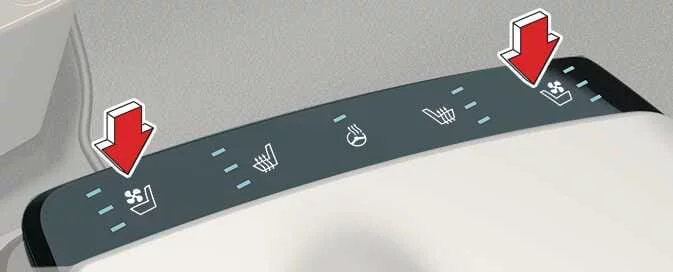

Air ventilation seat: (if equipped)

Kia EV6 ventilated front seat cooling and airflow controls

The Kia EV6 ventilated seat airflow level changes according to the illuminated button indicator.

To cool and ventilate the Kia EV6 seat cushion and seatback area, press the blue ventilation switch.

Each time the Kia EV6 seat ventilation button is pressed, the airflow setting changes as follows:

The Kia EV6 seat warmer and air ventilation system automatically return to the OFF position whenever the vehicle is restarted.

CAUTION

Seat damage

When cleaning the Kia EV6 ventilated seats, avoid using organic solvents such as paint thinner, benzene, alcohol, or gasoline. These chemicals may damage the ventilated seat surfaces and internal components.

Do not place heavy, sharp, or pointed objects on the Kia EV6 ventilated seats. Such objects may damage the seat material or ventilation system.

Prevent liquids such as water, coffee, or soft drinks from spilling onto the Kia EV6 ventilated seats. If liquid is spilled, wipe the seat immediately using a dry cloth and allow the seat to dry completely before operating the ventilation system.

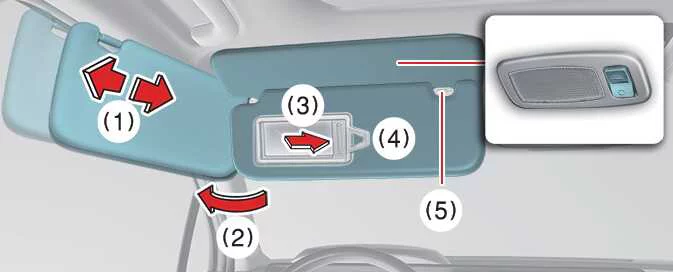

Sun visor

The Kia EV6 sun visor helps shield the driver and front passenger from direct sunlight entering through the front windshield or side windows.

The actual Kia EV6 vanity mirror lamp and visor appearance may differ slightly from the illustration shown.

To use the Kia EV6 sun visor, pull it downward.
To block sunlight from the side window, pull the Kia EV6 visor downward, release it from the bracket (1), and rotate it toward the side window position (2).
To access the Kia EV6 vanity mirror, lower the visor and slide open the mirror cover (4).
The Kia EV6 visor extension can be adjusted forward or backward for improved sun protection (3).
A ticket holder (5, if equipped) is included for storing tollgate tickets or parking receipts.

CAUTION

Vanity Mirror Lamp

If the Kia EV6 vanity mirror lamp is used, switch the lamp OFF before returning the visor to its original position. Failure to do so may lead to battery discharge or possible damage to the sun visor assembly.

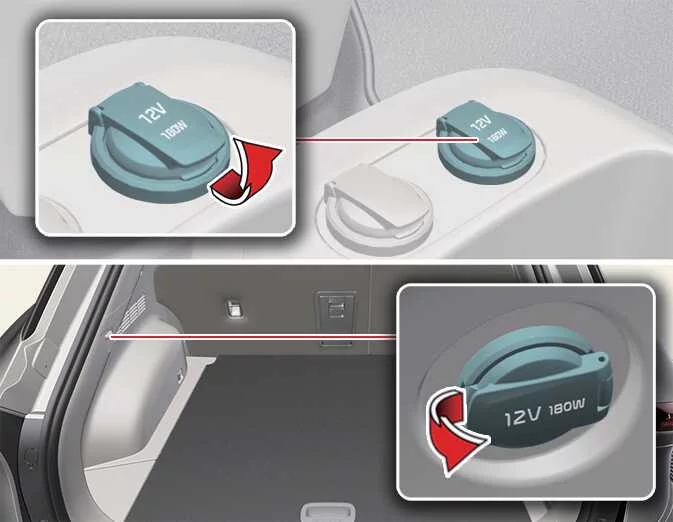

Power outlet

The Kia EV6 power outlet is designed to provide electrical power for mobile phones, portable electronic devices, and other accessories compatible with automotive electrical systems.

The connected Kia EV6 electrical accessories should consume less than 15 amps while the vehicle is operating.

Use the Kia EV6 power outlet only while the vehicle is switched ON and disconnect accessories after use. Operating accessories for long periods while the vehicle is OFF may discharge the auxiliary battery.
Only use Kia EV6 compatible 12-volt electrical accessories rated below 15 amps.
When using high-power electrical accessories, reduce the Kia EV6 heater or air conditioning system to the lowest operating level.
Keep the power outlet cover closed whenever the outlet is not in use.
Some electronic devices may create electrical interference when connected to the Kia EV6 power outlet. This may result in audio static or malfunction of other electronic systems inside the vehicle.
Insert the accessory plug fully into the Kia EV6 power outlet. Poor electrical contact may cause overheating or blow the fuse.
Use battery-equipped electronic devices with reverse-current protection. Current from the accessory battery may flow into the Kia EV6 electrical system and cause malfunction.

WARNING

Electric shock

Do not insert fingers or foreign objects such as pens or metal tools into the Kia EV6 power outlet. Never touch the outlet with wet hands. Failure to follow these precautions may result in electric shock or injury.

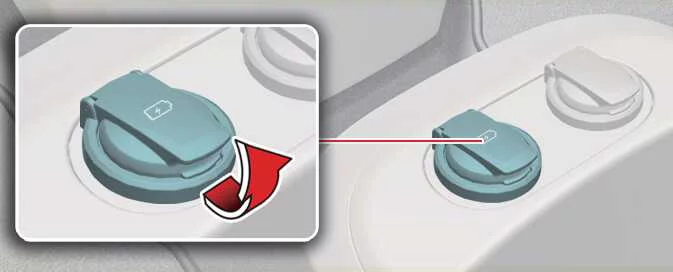

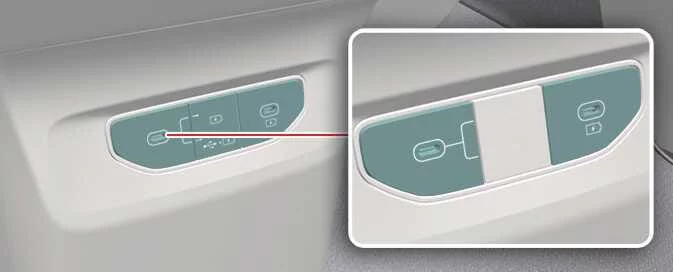

USB charger: (if equipped)

The Kia EV6 USB charging ports are designed to recharge smartphones, tablets, and other small electronic devices using a compatible USB cable connection.

The Kia EV6 USB charging system operates when the vehicle is in the POWER ON or DRIVE READY position.

You can monitor the charging status and battery level directly from the connected electronic device.

After charging is complete, disconnect the USB cable from the Kia EV6 USB charging port.

NOTE

Some devices may not support Kia EV6 fast charging functionality and may charge only at standard charging speed.

Use the Kia EV6 USB charging system only while the vehicle is operating to help prevent auxiliary battery discharge.

Only electronic devices compatible with the Kia EV6 USB port size and specifications should be connected.

The Kia EV6 USB charger is intended exclusively for battery charging purposes and not for high-power electrical operation.

Portable battery chargers and certain power bank systems may not recharge correctly through the Kia EV6 USB charging outlet.

TIP

Kia EV6 USB-C charging ports support Power Delivery 3.0 technology for compatible smartphones and tablets equipped with fast charging capability.

This function is designed primarily for digital devices equipped with USB Type-C connectors.

Actual Kia EV6 charging speed depends on the charging specifications and thermal management system of the connected device.

Rated output: 9.0 V/Max 3.0 A

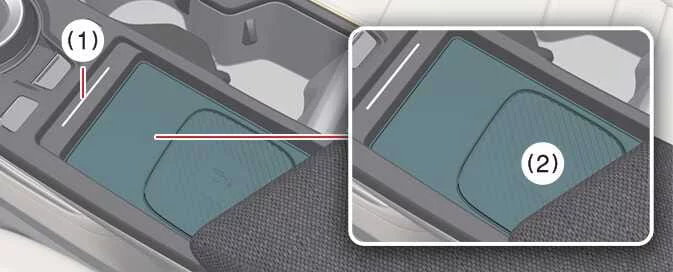

Wireless smart phone charging system: (if equipped)

The Kia EV6 wireless smart phone charging system is integrated into the center console for convenient cable-free smartphone charging.

Kia EV6 wireless smartphone charging pad and indicator light

Charging indicator
Wireless charging pad

Close all Kia EV6 doors securely and switch the vehicle ON before using the wireless charging system.

To begin wireless charging, place a Qi-compatible smartphone directly onto the center area of the Kia EV6 wireless charging pad.

For the best Kia EV6 wireless charging performance, position the smartphone precisely in the center of the charging surface.

The Kia EV6 wireless charging system is intended for one Qi-enabled smartphone at a time. Refer to the smartphone manufacturer or device documentation to confirm Qi wireless charging compatibility.

Interior features

Charging wireless smart phone
