Kia K4: Opening and Closing / Windows

Contents:

• Window opening and closing
• Power window lock button

The doors of this premium vehicle come integrated with an advanced multi-zone power window system that allows occupants to adjust cabin airflow with tactile master armrest switches. The underlying window motors feature automated thermal protection circuitry to ensure sustained operation under heavy load variations in your Kia K4.

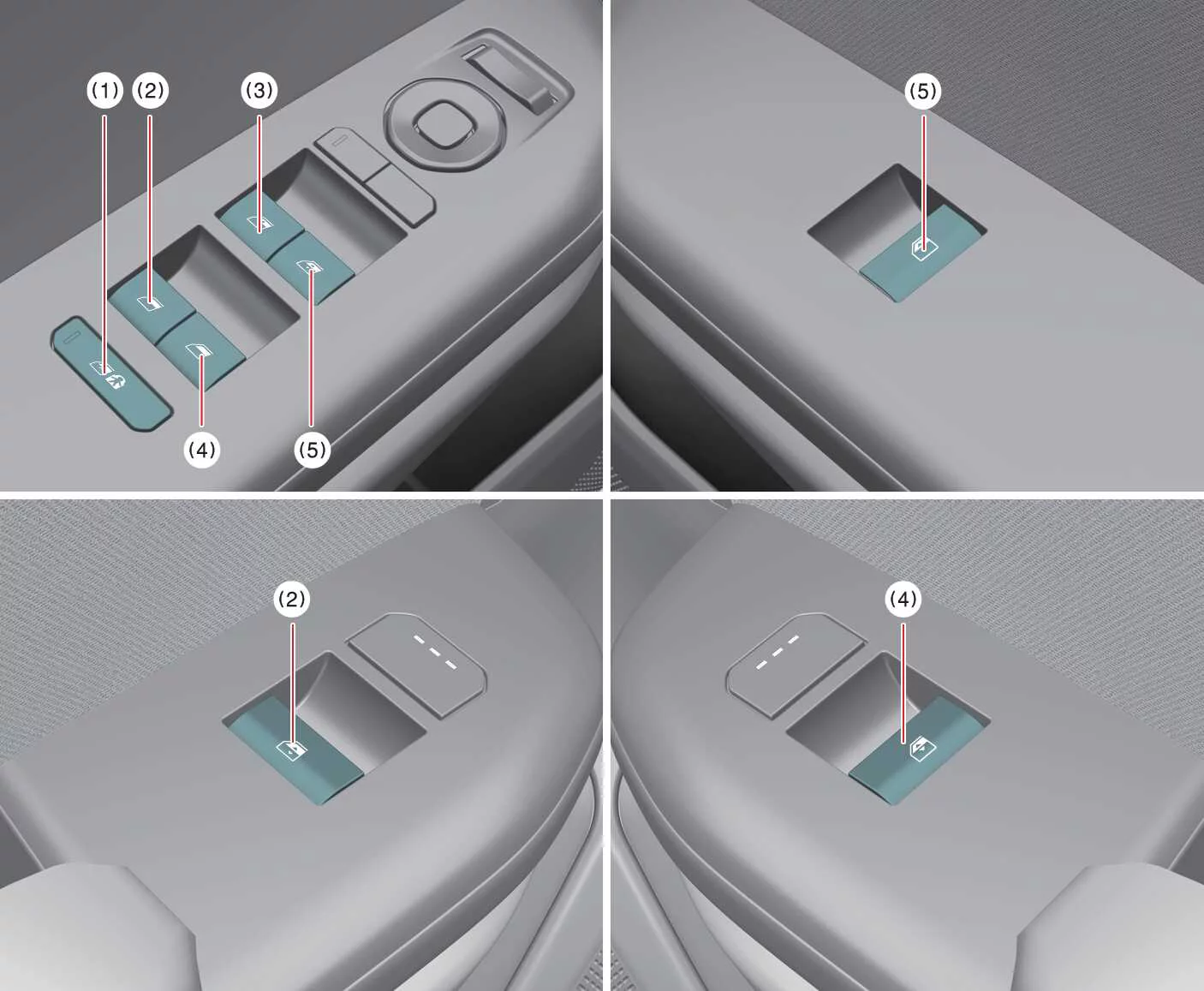

1. Power Window Lock Switch: Grants the driver the ability to completely isolate the signal path, preventing rear seat occupants from independent window operation.

2. Rear Door (Left) Power Window Switch: Regulates the glass positioning for the left-hand rear passenger compartment side frame.

3. Driver’s Door Power Window Switch: Controls the primary driver-side glass panel, complete with automatic one-touch rapid express down and up controls.

4. Rear Door (Right) Power Window Switch: Manages the glass panel for the right-hand rear passenger compartment side frame.

5. Front Passenger’s Door Power Window Switch: Regulates the window glass positioning for the front co-driver occupant seat area.

SUB-ZERO TEMPERATURE CLIMATIC SAFEGARD NOTE:

In extremely cold, damp, or wet climates, the power windows may fail to move smoothly or might refuse to activate altogether due to ice build-up along the rubber glass run channels and exterior beltline weatherstripping of your Kia K4.

For the internal electrical relay logic to authorize window adjustments, the vehicle network architecture must be active; therefore, the ENGINE START/STOP button must be placed in the complete ON power position.

Each door frame features an individual localized power window switch that controls that specific door's window regulator. To protect children or vulnerable occupants, the driver has a dedicated power window lock button on the master armrest switch assembly, which can instantly block the independent operation of the rear passenger windows. Following vehicle shut down, an integrated power retention relay allows you to operate the power windows for approximately 3 minutes after turning the ENGINE START/STOP button to the ACC or LOCK/OFF position. However, if either of the front doors are physically opened during this period, the power retention sequence terminates instantly, disabling any remaining window control inside your Kia K4.

If the window glass encounters physical resistance and cannot close because external objects or debris are blocking the upper run channels, the integrated safety modules will halt progression. Simply remove the obstructing objects safely, verify the path is clear, and pull the toggle upward to close the window completely.

AERODYNAMIC WIND BUFFETING TUNING TIPS:

While driving at medium to high highway speeds with the rear passenger windows rolled down or with the panoramic sunroof in a fully open or partially retracted position, you may experience a rhythmic wind buffeting (or low-frequency pulsation) noise inside the cabin. This resonance is a normal aerodynamic trait of modern vehicles and can be minimized or completely eliminated by taking the following operational actions:

• If the wind pulsation noise occurs when one or both of the rear windows are down, partially lower both front windows approximately 1 inch (2.5 cm) to equalize interior atmospheric pressure.

• If the buffeting noise occurs primarily while the sunroof is open, slightly reduce the width of the sunroof opening via the overhead toggle switch to disrupt the external air stream across your Kia K4.

CRITICAL AFTERMARKET ACCESSORY AND AUTO-REVERSAL RESTRICTIONS:

Do not install any aftermarket accessories, rain guards, custom visors, or window film modifications that physically extend into or grip the open window guide channels. Such objects alter the physical friction tolerances of the track, which will negatively impact the precision of the integrated Automatic Reversal Jam Protection safety feature, potentially causing the window mechanism to reverse prematurely or crush objects.

EXPRESS AUTO-DOWN COMFORT CONVENIENCE LOGIC:

If you press the 1-touch auto window button past its secondary resistance detent to make a swift physical adjustment, the internal control unit will automatically guide the glass down to a factory-calibrated specific location optimized for premium cabin air ventilation layout convenience inside your Kia K4.

Window opening and closing

You can seamlessly control and adjust the cabin airflow by opening and closing the side windows using the ergonomic power window switches. The electrical window regulators are integrated with the vehicle's central power network to ensure precise glass panel positioning inside your Kia K4.

Type A — Standard Manual Control Window System

To manually adjust the glass to a custom height, gently press down or pull up the front edge of the corresponding door switch to the first mechanical detent position (1). The window glass will stop moving immediately the moment you release the switch on your Kia K4.

Type B — Auto Up/Down Express Window System

Momentarily pressing down or pulling up the power window switch past the primary resistance point to the second detent position (2) engages the express automatic mode. This completely lowers or raises the window glass automatically, even after you release the switch. To halt the glass panel at a desired midway position while it is in rapid automatic motion, simply tap, pull up, or press down on the switch once more and release it quickly.

To reset the power windows

If the battery has been disconnected, the vehicle has been jump-started, or the automatic window regulator does not operate normally, you must re-calibrate and reset the automatic power window electronic logic parameters as follows:

1. Ensure the vehicle is stationary, then move the ENGINE START/STOP button to the active ON position.

2. Pull up on the corresponding master power window switch until the glass is fully closed, and continue pulling up firmly on the switch for at least 1 uninterrupted second after the window has completely reached its uppermost seal trim inside your Kia K4.

Once this hold sequence is complete, release the switch and test the automatic one-touch feature to confirm that the internal calibration memory has been properly restored.

Automatic reversal Jam Protection feature

If an object, clothing, or a part of the human body blocks the upward express movement of the glass panel, the advanced anti-pinch sensor system will instantly detect the counter-resistance load and halt all upward motor torque. The electronic control module will then immediately force the window to reverse direction and move down approximately 11.8 inches (30 cm), allowing you to safely clear the physical obstruction from the window frame area.

Alternatively, if the window logic registers physical resistance while you are manually pulling up and holding the power window switch continuously in the first detent position, the glass will stop its upward travel, pause, and then back down approximately 1 inch (2.5 cm) to ease pressure on the object.

Deactivation Override Logic: If you pull up and hold the power window switch continuously within 5 seconds immediately after the automatic window reversal feature has been triggered, the anti-pinch safety mechanism will be bypassed temporarily and will not operate again for that specific closing cycle. This override allows you to manually force the window shut if it is being blocked by ice, dense snow, or debris in your Kia K4.

CRITICAL ACTIVATION THRESHOLD TIP:

The anti-pinch automatic reversal safety feature is exclusively active when utilizing the one-touch "Auto Up" function by pulling the switch all the way past the second detent. The safety reversal logic remains completely offline if you are manually crawling the window upward using the halfway manual position (1) on the power window switch cluster.

MINIMUM DIAMETER DETECTION AND PROFILE SENSING NOTE:

To completely avoid severe personal injuries or expensive vehicle door damage, always perform a visual check for obstructions before raising any glass panel. If a thin object measuring less than 0.16 inch (4 mm) in diameter becomes pinched between the upper edge of the window glass and the rubber run channel trim, the resistance profile may fall below the sensor threshold. Consequently, the automatic reverse window may fail to register the object and will not stop and reverse direction on your Kia K4.

CALIBRATION CYCLE CRUSH HAZARD WARNING:

The integrated automatic safety reverse feature is completely disabled while performing the manual power window system memory reset procedure. Always ensure that your hands, fingers, hair, pets, and other belongings are safely clear of the glass path before initiating a reset sequence to avoid severe crush injury.

AFTERMARKET TRIM ACCESSORY IMPACT NOTE:

Do not install any aftermarket window visors, tinted rain deflectors, or clip-on accessories that slide directly into the upper window run channels. Such installations alter the mechanical friction coefficients within the channel guides, which can trick the system into sensing a permanent blockage and cause the automatic reverse feature to malfunction or fail on your Kia K4.
