Kia K4: Driver Adjustments / Steering wheel
Contents:
- Motor Driven Power Steering (MDPS)
- Tilt and telescopic steering wheel
- Steering wheel heater
- Steering wheel haptic warning
- Horn
The steering system in the Kia K4 is designed for premium ergonomics, offering both tilt and telescopic adjustments to accommodate various driver statures, along with an integrated horn for clear signaling.
Motor Driven Power Steering (MDPS)
Your Kia K4 utilizes an advanced Motor Driven Power Steering (MDPS) system, which employs a dedicated electric motor to provide variable assistance, ensuring effortless handling in diverse driving conditions.
In the unlikely event that the vehicle’s power steering system becomes inoperable, manual steering remains possible; however, you will notice that the steering wheel requires significantly increased physical effort to turn.
The MDPS unit functions by continuously monitoring steering wheel torque and real-time vehicle speed to command the electric motor with high precision.
To enhance driver confidence and road feedback, the steering effort in the Kia K4 automatically increases as vehicle speed rises, while becoming lighter and more maneuverable during low-speed parking or city driving.
Should you perceive any irregularities or sudden changes in steering feel during normal operation, we strongly recommend having the system inspected by an authorized Kia dealer.
TIP
The following behaviors are considered normal operation characteristics of your Kia K4:
-
When the ENGINE START/STOP button is moved to the ON position, the system runs a diagnostic check of the MDPS module for approximately 3 seconds before entering normal operation mode.
-
You may hear a subtle 'click' sound originating from the MDPS relay when transitioning the ignition to the ON or OFF positions.
-
It is common to hear slight mechanical noise when steering while the Kia K4 is stationary or operating at very low speeds.
-
If the MDPS system detects an inconsistency, a warning light will appear or blink on your instrument cluster. If power assistance is lost, please be prepared to apply extra force to the steering wheel.
-
Operating the steering wheel in extremely low temperatures may require more force and generate increased noise. Once the interior cabin temperature rises, the steering feel will return to its optimal, lighter state.
-
If the charging system warning light illuminates due to low voltage (e.g., alternator or battery issues), you may experience a temporary increase in steering resistance.
-
If you jump-start your Kia K4 after a battery discharge, the steering may feel unusual momentarily. This is a side effect of low system voltage. Once the battery reaches a stable charge, steering will return to normal. Always test the steering movement after a jump start before driving.
TIP
If the steering wheel is operated continuously for an extended period, the MDPS overcurrent protection device may activate, temporarily increasing the force required to turn the wheel. This is a standard safety feature to prevent component overheating and will reset to normal operation after a brief cool-down period.
WARNING
If the MDPS warning light appears or blinks, you may find that steering the Kia K4 requires significantly more effort than you are accustomed to. In this situation, grip the steering wheel firmly with both hands, apply necessary force, move the vehicle to a safe location away from traffic, and contact an authorized Kia dealer immediately for a professional inspection.
Tilt and telescopic steering wheel ➤
Steering wheel heater

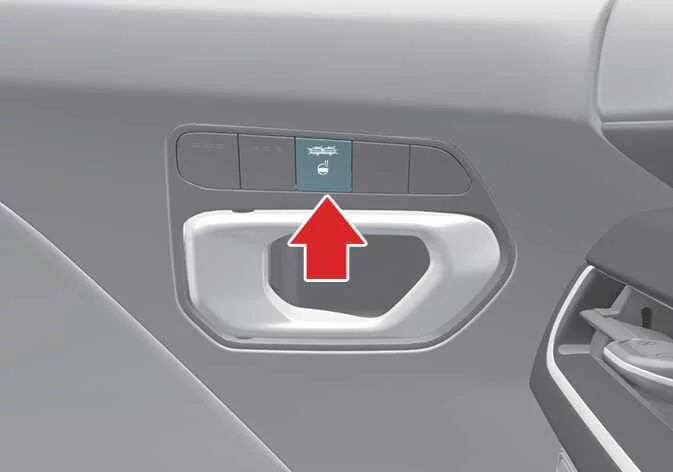

When the Kia K4 ENGINE START/STOP button is in the ON position, you can activate the heated steering wheel system by pressing the designated button. When active, an indicator light on the button will illuminate to confirm operation.
|
-
To activate, press the steering wheel heater button. The indicator will light up, and the steering wheel rim will begin to warm.
-
To ensure passenger safety and prevent low-temperature burns, the Kia K4 steering wheel temperature is automatically managed by the system once activated.
Steering wheel heater level
Operating time
Off
-
2 (Strong)
30 minutes
1 (Weak)
Until restart
When using Level 2 (Strong), the system will automatically transition to Level 1 (Weak) after approximately 30 minutes to maintain comfortable warmth.
If not manually adjusted, the system will remain at Level 1 until the vehicle is turned off.
-
To deactivate the heater manually, press and hold the steering wheel heating button until the indicator light turns off.
NOTE
Do not install any aftermarket steering wheel grip covers, as they may impair the heat transfer and functionality of the heated system in your Kia K4.
When cleaning the steering wheel, avoid organic solvents such as paint thinner, benzene, alcohol, or gasoline, as these can permanently damage the surface material.
Be careful not to strike the surface of the steering wheel with sharp objects, as this can puncture the leather or material and damage the internal heating components.
WARNING
If the steering wheel becomes excessively warm, turn the system off manually. Even at lower temperature settings, prolonged exposure to heat can potentially cause burns; use caution if you have sensitive skin or are using the feature for an extended period.
Steering wheel haptic warning
The Kia K4 is equipped with an advanced driver assistance feature that provides a haptic warning through the steering wheel. By vibrating the steering wheel, the Kia K4 alerts you immediately when the system identifies a potentially dangerous driving situation, helping you maintain focus and react proactively.
Operation
To configure or enable this feature, turn the ignition to the ON position. Using the infotainment system, navigate to Setup > Vehicle > Driver Assistance > Warning Methods > Haptic Warning to customize your preferences.
TIP
Please note that the menu structure of your Kia K4 infotainment system may evolve following software updates. For the most accurate and up-to-date configuration steps, always refer to the digital manual accessible directly through your infotainment system or the provided quick reference guide.
Horn

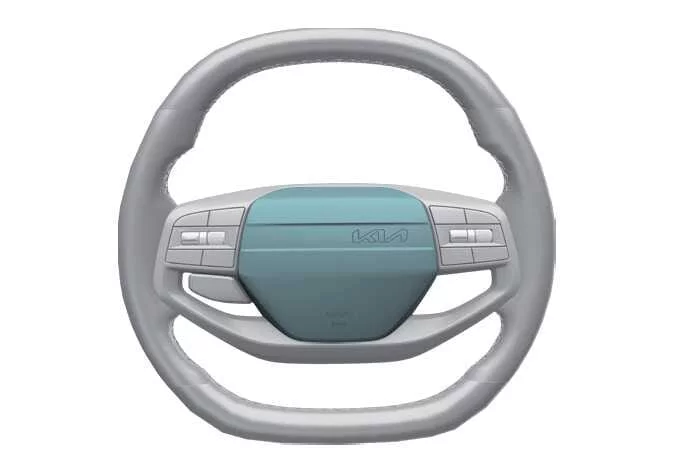

To sound the horn of your Kia K4, press firmly on the designated area marked with the horn symbol located at the center of the steering wheel (see illustration below).
|
The horn is designed to activate only when direct pressure is applied to the center pad. We recommend checking the functionality of your horn periodically to ensure it remains operational for safety and signaling purposes.
NOTE
Always operate the horn with the palm of your hand. Do not strike the horn center with your fist, and avoid pressing it with sharp, pointed, or hard objects, as this may cause permanent damage to the switches or the steering wheel cover.
