Kia K4: Instrument cluster / LCD display

Contents:

• LCD display modes
• LCD display messages

The high-resolution LCD display in your Kia K4 serves as a central hub for essential vehicle information, driving statistics, and system settings. You can seamlessly navigate and customize the various LCD display modes using the intuitive steering wheel-mounted control buttons, allowing you to stay informed while keeping your focus on the road.

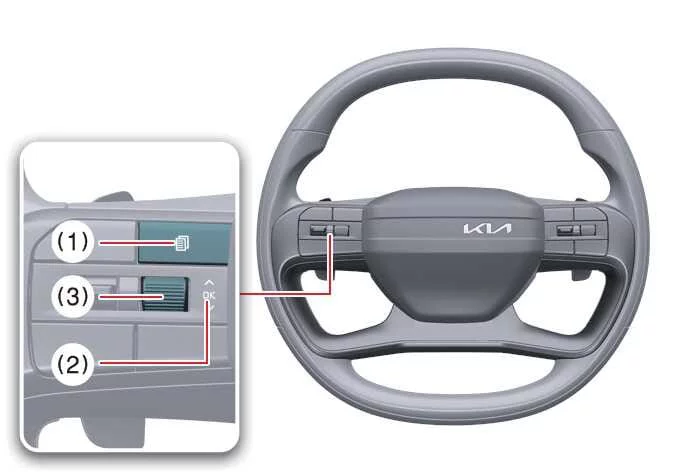

LCD display control

The table below outlines the specific functions for each control button found in the Kia K4 cabin to help you master the interface:

Switch	Control	Action
Mode (1)	Short Press	Cycle through the different primary view modes available on the Kia K4 instrument cluster.
OK (2)	Short Press	Select or operate additional functions within the current Kia K4 menu.
	Long Press	Reset accumulated trip or menu information back to default values.
Up/Down (3) ,	Short Roll	Navigate and search through various utility information and settings menus displayed on your Kia K4.

Pro-tip for navigation: To maximize the utility of your Kia K4 display, we recommend taking a few minutes while the vehicle is parked to explore the full range of sub-menus. This allows you to personalize your driving experience by prioritizing the data—such as fuel economy, tire pressure, or driver assistance status—that is most important to your daily commute.

LCD display modes

The Kia K4 instrument cluster features a highly versatile LCD display that offers 5 distinct modes, designed to provide you with a comprehensive overview of your vehicle's performance. You can effortlessly switch between these modes by pressing the Mode button on your steering wheel.

Driving assist view

This mode provides an at-a-glance status update for the following systems in your Kia K4:

• Lane Keeping Assist

• Smart Cruise Control

• Lane Following Assist

• Tire pressure monitoring

For more technical details, please refer to the Driver assistance guide.

Navigation view

This mode is essential for long-distance travel, as it projects navigation cues directly onto the Kia K4 instrument cluster, minimizing the need to look away from the road toward the center touchscreen.

Utility information view

Low pressure warning display

Low tire pressure location

This warning message appears in the Kia K4 display when the tire pressure drops below the recommended threshold, precisely indicating which tire requires maintenance. For more details, refer to Tire Pressure Monitoring System (TPMS).

Fuel economy

This data is permanently visible at the bottom center of the Full LCD information cluster in your Kia K4.

Average fuel economy Instant fuel economy

Average fuel economy is calculated based on total distance and consumption. TIP: To ensure high data precision, the average fuel economy is not displayed until the Kia K4 has been driven for more than 10 seconds or 0.03 mi (50 m) after ignition. Instant fuel economy tracks efficiency when vehicle speed exceeds 6.2 mph (10 km/h).

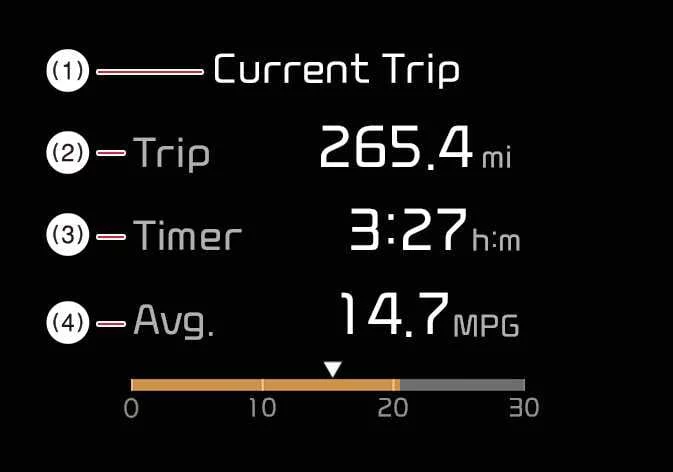

Drive Info display

The Drive Info display provides a snapshot of your trip duration, distance, and efficiency for each ignition cycle.

Current Trip Total Trip Timer Average Efficiency

• Fuel efficiency calculations for the Kia K4 begin once the vehicle has traveled over 0.19 miles (300 m).

• Information resets automatically after the Kia K4 ignition is turned off and the driver’s door is opened, or after 3 minutes of inactivity.

• You can manually reset this data by holding the “OK” button for approximately 1 second while the information is displayed.

Please note that driving information for your Kia K4 is actively accumulated whenever the engine is running, regardless of whether the vehicle is in motion or idling.

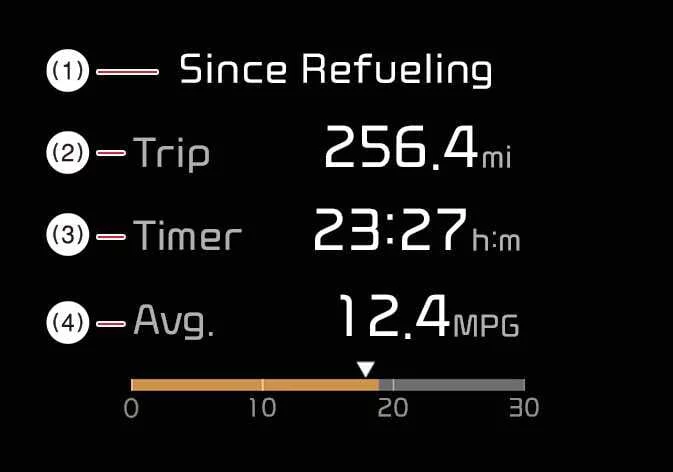

Information since refueling

Distance Since Refueling Trip duration Timer Average efficiency

This dedicated screen in your Kia K4 provides a detailed summary of trip distance, average fuel economy, and instant fuel efficiency or total driving time, calculated specifically from the moment you last refueled.

• Calculation for this mode begins automatically once the Kia K4 has traveled more than 0.19 miles (300 m).

• To manually reset these statistics, press and hold the "OK" button for more than 1 second while this display is active.

• The system will trigger an automatic reset every time you add fuel to the Kia K4.

• Data accumulation remains active while the engine is running, including time spent stationary.

TIP

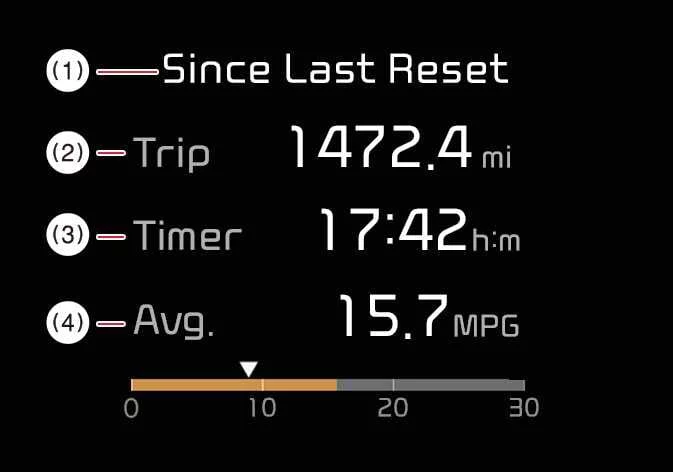

Accumulated driving information mode

This mode tracks the long-term history of your Kia K4, displaying total accumulated trip distance, overall average fuel efficiency, and total elapsed driving time.

Since Last Reset Total Trip Distance Total Timer Average Efficiency

• Cumulative information is calculated after the Kia K4 has covered more than 0.19 miles (300 m).

• You can reset this data by pressing the "OK" button for at least 1 second while viewing the Cumulative Information screen.

• Statistics are continuously aggregated whenever the Kia K4 engine is active.

Other view modes

Master warning mode

This mode centralizes critical notifications for the Kia K4, including:

• Driver assistance system malfunctions, sensor limitations, or radar/camera obstructions.

• LED headlamp or general exterior lamp malfunctions.

• TPMS (Tire Pressure Monitoring System) faults or low-pressure alerts.

When an issue occurs, the Master Warning icon () will illuminate. Once the underlying issue is resolved, the warning light and the associated icon will automatically turn off.

Service mode

This mode is designed to help you stay on top of scheduled maintenance for your Kia K4.

Service interval

Service Interval Countdown

The Kia K4 intelligently calculates and notifies you of upcoming maintenance requirements based on your mileage or time intervals. When you are within 900 miles (1,500 km) or 30 days of a service, a reminder message will appear briefly each time you start the vehicle.

Service required

If you surpass the recommended maintenance schedule, a "Service required" message will display upon startup to remind you to schedule an appointment with your dealer.

TIP
