Kia K4: Controls and Features / Automatic climate control system

Contents:

• Automatic heating and air conditioning (A/C) operation
• Manual heating and air conditioning (A/C) operation
• Air conditioning (A/C) automatic drying
• Recirculate air
• Recirculating air when washer fluid is used

The advanced automatic climate control system in your Kia K4 maintains a consistent, comfortable cabin environment for you and your passengers by automatically managing temperature, airflow, and humidity levels.

1. SYNC button: Press to synchronize the passenger side temperature with the driver's setting.

2. Mode selection button

3. Fan speed control/off button

4. Infotainment system screen power button

5. Front windshield defroster button

6. Rear window defroster button

7. Air intake control button

8. Air conditioning (A/C) button

9. AUTO (automatic control) button

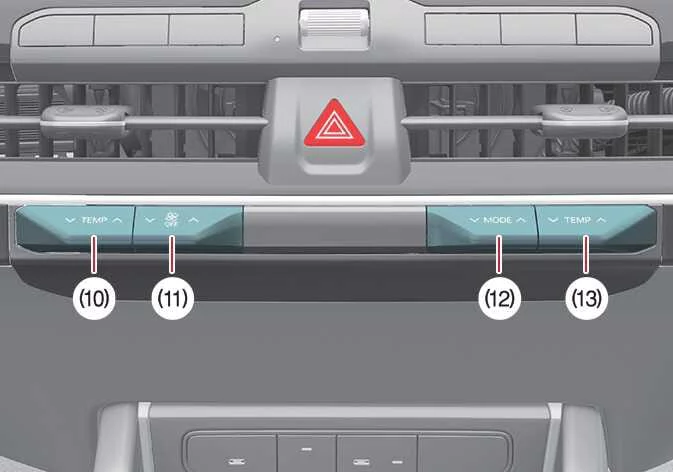

10. Driver's side temperature control lever

11. Fan speed control/off lever

12. Mode selection lever

13. Passenger's side temperature control lever

NOTE

Automatic heating and air conditioning (A/C) operation

1. Tap the AUTO icon on the Kia K4 interface. The system will intelligently manage air distribution, fan speeds, intake, and A/C based on your selected temperature.

   Level	Indicator	LCD Display	Air flow
   High			2–8
   Medium			1–6
   Low			1–4

2. Use the temperature control lever to reach your ideal Kia K4 cabin climate.

TIP

TIP

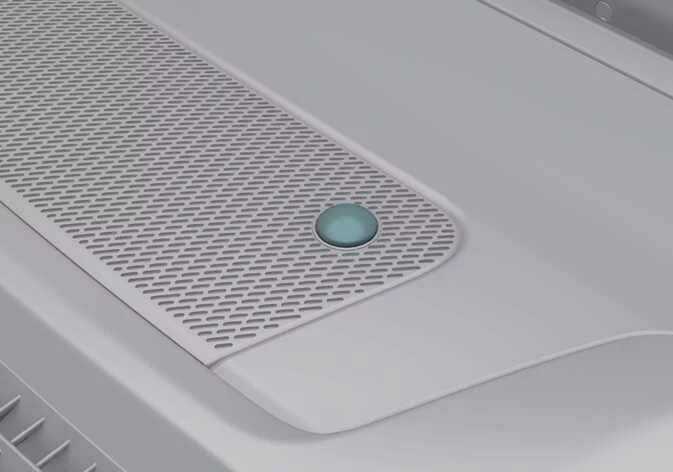

To ensure the heating and cooling system operates with maximum accuracy, please do not cover the ambient light and climate sensor located on the dashboard of your Kia K4.

Manual heating and air conditioning (A/C) operation ➤

Air conditioning (A/C) automatic drying

The Kia K4 features an A/C automatic drying function, which helps remove residual moisture from the system to reduce the potential for A/C-related odors. The blower motor will automatically engage for a short period, 30 minutes after the vehicle has been turned off, to ensure the evaporator core is dry.

Turning A/C automatic drying on or off

You can configure this feature through the Kia K4 infotainment system by navigating to: Settings > Climate > Climate Features > A/C Automatic Drying. When active, the system automatically adjusts the fan to the third speed level and switches the intake to the outside (fresh) air position to facilitate drying.

TIP

Operating conditions

The A/C automatic drying feature will trigger under the following conditions:

• The vehicle was turned off after the air conditioning was used for an extended period.

• The 12V battery charge level is sufficient to support the operation.

• The ambient outside temperature is above the required threshold.

Non-operating conditions

The automatic drying process will stop or will not initiate if:

• The drying cycle has reached the 10-minute operation limit.

• The ENGINE START/STOP button is pressed, or the vehicle's ignition is switched to the ON position.

• The Kia K4 climate control system is being operated via a remote start feature.

NOTE

Recirculate air

The Kia K4 is equipped with an intelligent climate system that automatically toggles the air conditioning to internal air circulation mode. By leveraging real-time navigation map data and vehicle speed, your Kia K4 effectively prevents polluted air, exhaust fumes, or strong odors from entering the cabin, particularly when driving through tunnels or highly congested areas.

To configure these preferences, navigate to Settings > Vehicle > Climate > Recirculate Air on your Kia K4 infotainment system screen.

• Activate upon Washer Fluid Use: This setting proactively prevents the sharp odor of washer fluid from being drawn into the Kia K4 cabin.

• Activate upon Entering Tunnels: Upon detecting that you are entering a tunnel, the system automatically closes the windows and activates internal air circulation to maintain optimal air quality.

Operating condition(s)

• The system is active when driving at highway or motorway speeds.

• The feature functions when the Kia K4 air conditioning system is currently set to fresh air intake mode.

CAUTION

Recirculating air when washer fluid is used

To enhance your comfort, the Kia K4 can automatically switch to recirculation mode whenever the windshield washer is activated, effectively blocking the entry of washer fluid scent into the cabin.

With the vehicle ignition in the ON position, access this feature by selecting Settings > Vehicle > Climate > Climate Features > Activation on Washer Fluid Use on the infotainment display.

• Activation on Washer Fluid Use: Once enabled, the Kia K4 air conditioning system will temporarily switch to recirculation mode the moment you spray washer fluid, ensuring the cabin air remains clean and scent-free.

When you pull the wiper lever toward you to spray the windshield, a confirmation message will briefly appear on your Kia K4 infotainment display.

NOTE
