Kia EV6: Maintenance / Dedicated Remover Storage Position

Contents:

• Tire Replacement
• Wheel Replacement
• Tire Traction
• Tire Maintenance
• Tire Sidewall Labeling

TMK case Dedicated removal tool

How to Replace the Hub Cap Using the Dedicated Removal Tool

1. When reinstalling the hub cap on the Kia EV6, ensure that it is positioned in the designated mounting location.

2. The correct installation position varies depending on the wheel design and hub-cap configuration.

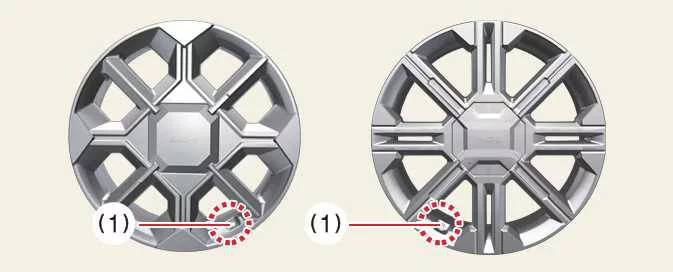

3. Before installation, align the valve-stem opening (1) in the hub cap with the hub-cap emblem and wheel valve position.

Valve stem

NOTE

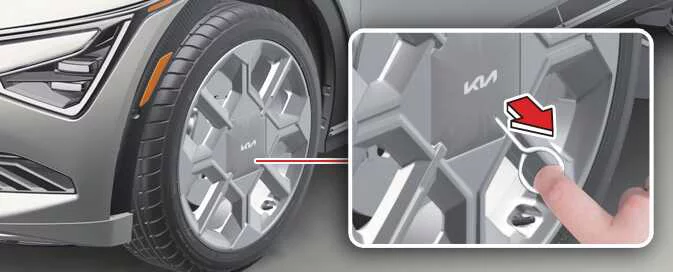

Remove the dedicated extraction tool from the Tire Mobility Kit of the Kia EV6. Insert the tool into the designated opening and carefully pull outward to remove the wheel cover safely and efficiently.

Tire Replacement

As the tires on your Kia EV6 wear, built-in tread-wear indicators gradually become visible across the tread surface. These indicators help determine when tire replacement is necessary.

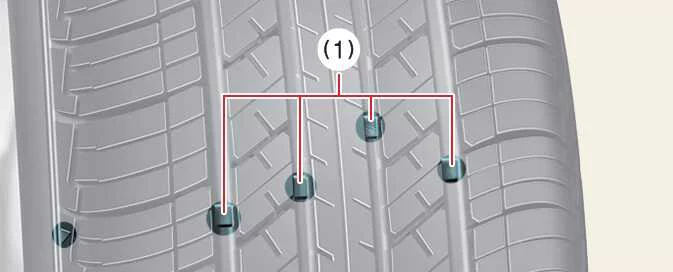

Tread wear indicator

When the tread-wear indicator appears as a continuous band across the tire tread, less than 1/16 inch (1.6 mm) of tread depth remains. At this point, the tire should be replaced immediately.

Do not wait until the wear indicator becomes visible across the entire circumference of the tire before replacing it.

The Anti-lock Brake System (ABS) and Electronic Stability Control (ESC) systems on the Kia EV6 rely on accurate wheel-speed information. Tire size directly affects wheel-speed calculations.

Whenever replacement tires are installed, all four tires should match the original tire size specification supplied with the Kia EV6. Installing tires of a different size may negatively affect ABS operation, ESC performance, vehicle stability, and safety systems.

Whenever possible, replace all four tires simultaneously to maintain balanced handling characteristics.

If replacing all four tires is not practical, replace tires in axle pairs by installing two matching tires on either the front axle or rear axle. Replacing only one tire may significantly affect handling, traction, braking performance, and overall stability.

NOTE

Wheel Replacement

Whenever metal wheels are replaced on the Kia EV6, ensure that the new wheels match the original factory specifications for diameter, rim width, offset, load capacity, and structural design.

Using wheels that differ from factory specifications may negatively affect wheel-bearing life, braking performance, handling characteristics, ride quality, suspension geometry, tire clearance, speedometer accuracy, odometer readings, headlamp alignment, and bumper height.

Improper wheel selection can also reduce driving stability and adversely affect the advanced safety systems of the Kia EV6.

CAUTION

Tire Traction

Tire traction is influenced by tread depth, tire condition, tire pressure, road conditions, and driving style.

Driving the Kia EV6 on worn tires, improperly inflated tires, or slippery road surfaces may significantly reduce available traction and increase stopping distances.

Replace tires immediately when the tread-wear indicators become visible.

Whenever driving in rain, snow, ice, or other low-traction conditions, reduce vehicle speed and allow additional distance for braking and maneuvering.

Maintaining proper tire condition helps maximize the safety and performance capabilities of the Kia EV6 in all weather conditions.

Tire Maintenance

In addition to maintaining proper tire pressure, correct wheel alignment is essential for minimizing tire wear and maximizing tire service life.

If you notice uneven tread wear on any tire of your Kia EV6, have the wheel alignment inspected by an authorized Kia dealer.

Whenever new tires are installed, ensure that they are properly balanced. Correct wheel balancing improves ride comfort, reduces vibration, and extends tire life.

Any tire removed from a wheel should be rebalanced before being returned to service.

Routine tire inspections and maintenance contribute to better handling, longer tire life, improved efficiency, and enhanced driving comfort for the Kia EV6.

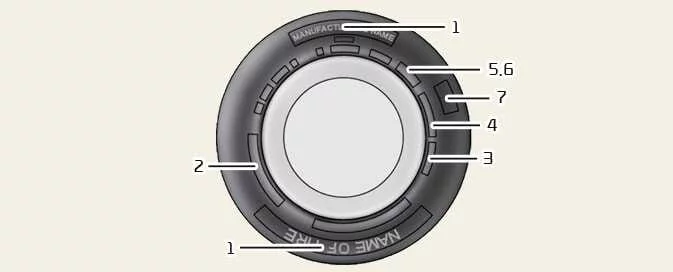

Tire Sidewall Labeling

The information molded into the tire sidewall identifies important tire specifications and characteristics. It also includes the Tire Identification Number (TIN), which is required for regulatory compliance and safety certification.

The Tire Identification Number (TIN) can be used to identify a specific tire during safety recalls, warranty claims, manufacturing tracking, or service campaigns involving the Kia EV6.
