Exterior overview

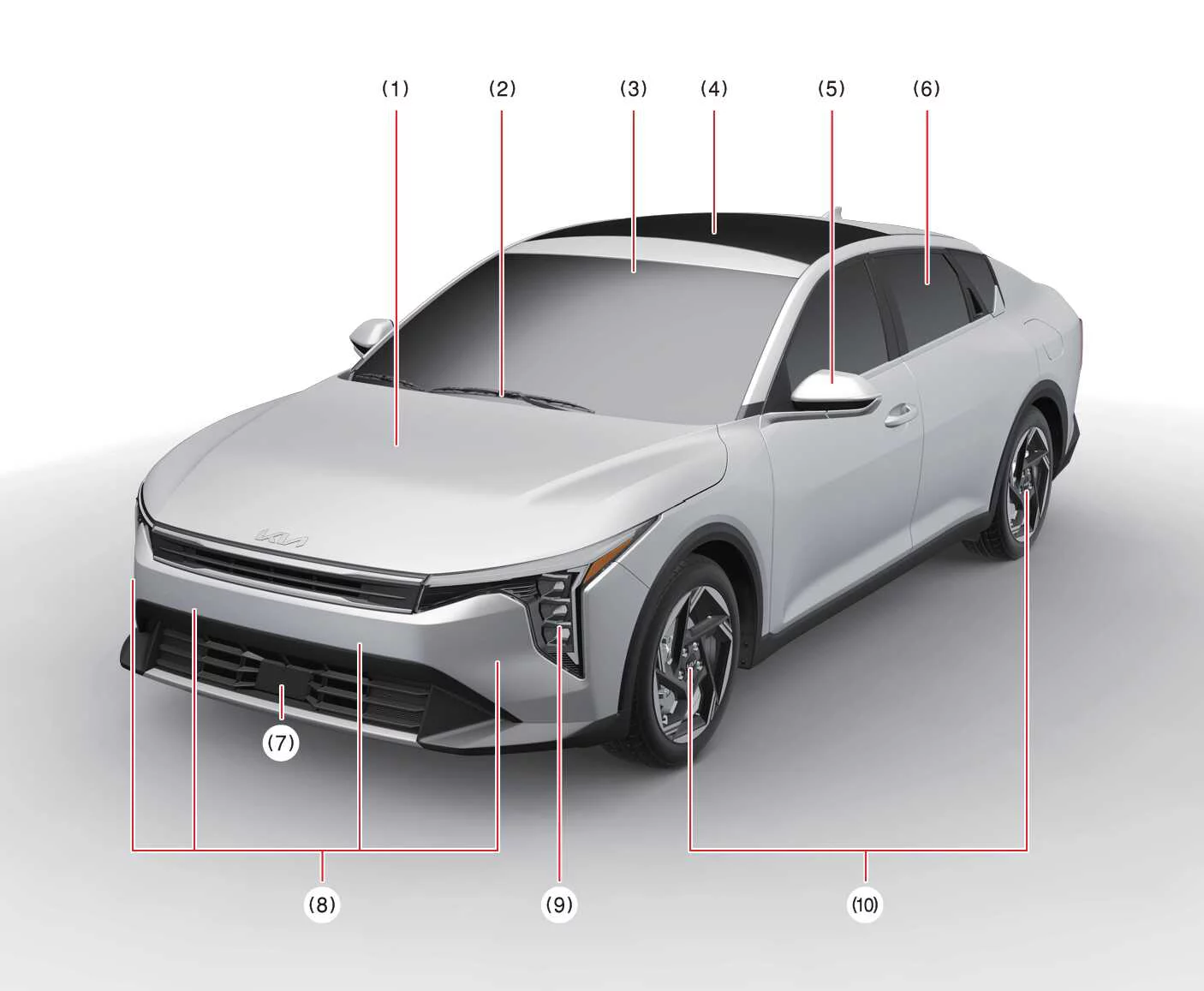

Front view of the standard Kia K4 four-door sedan showing the hood, headlamps, and front grille architecture — Figure 1. Front view (4 Door)

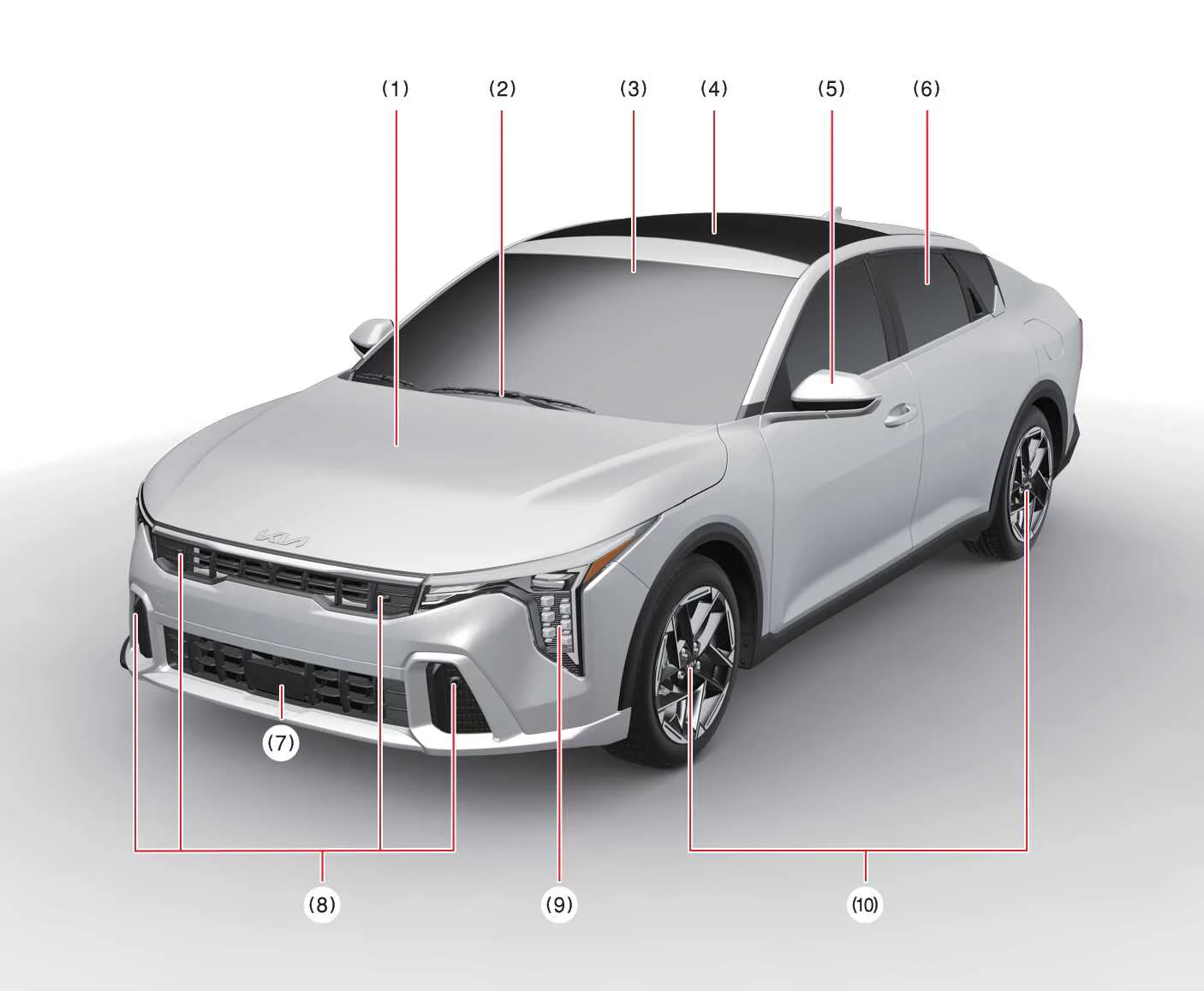

Front view of the sporty Kia K4 GT-Line four-door sedan highlighting aggressive bumper styling, radar sensors, and signature LED headlamps — Figure 2. Front view (4 Door) (GT-Line)

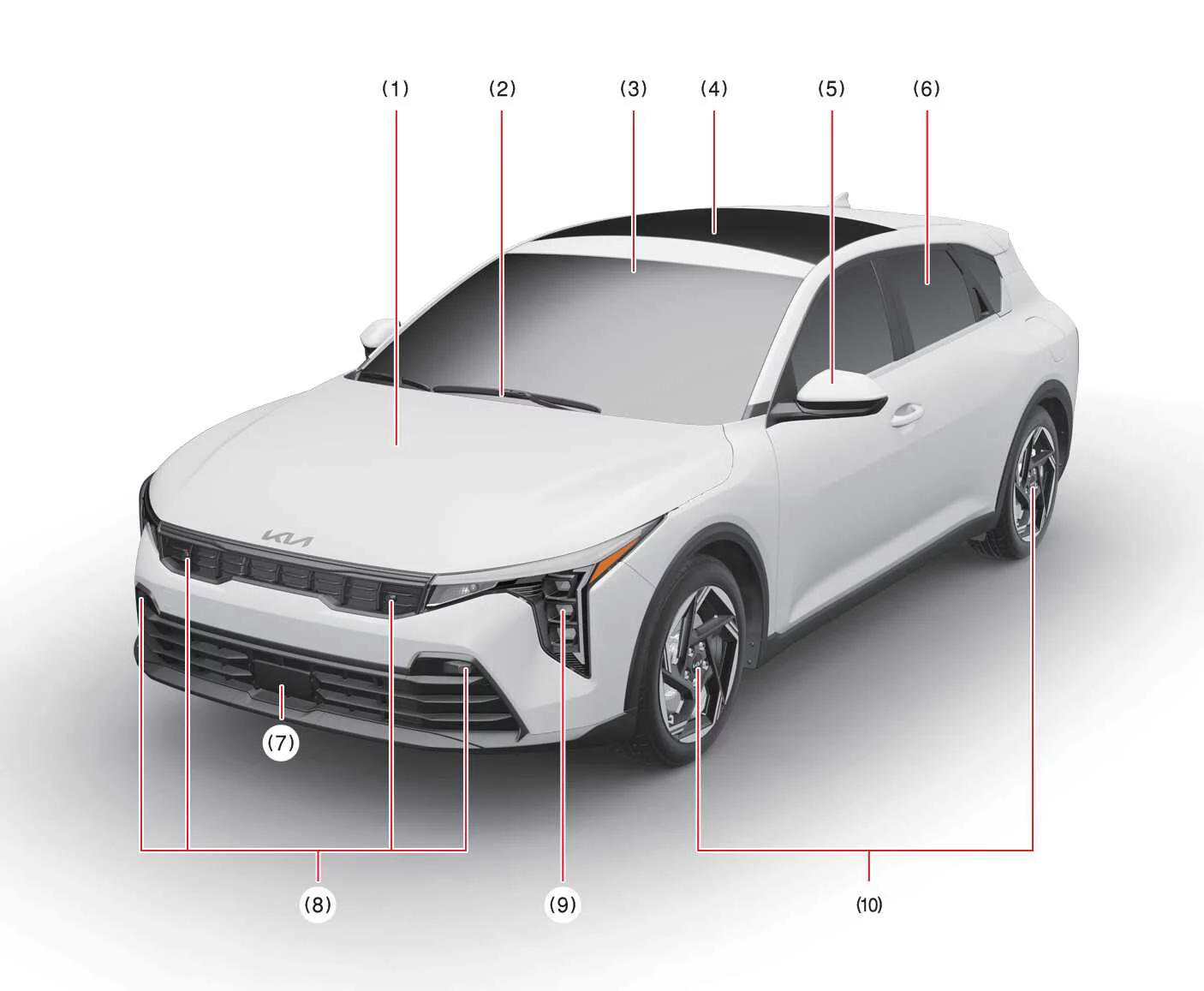

Front angle view of the Kia K4 five-door hatchback variant displaying the front windshield and sleek roofline — Figure 3. Front view (5 Door)

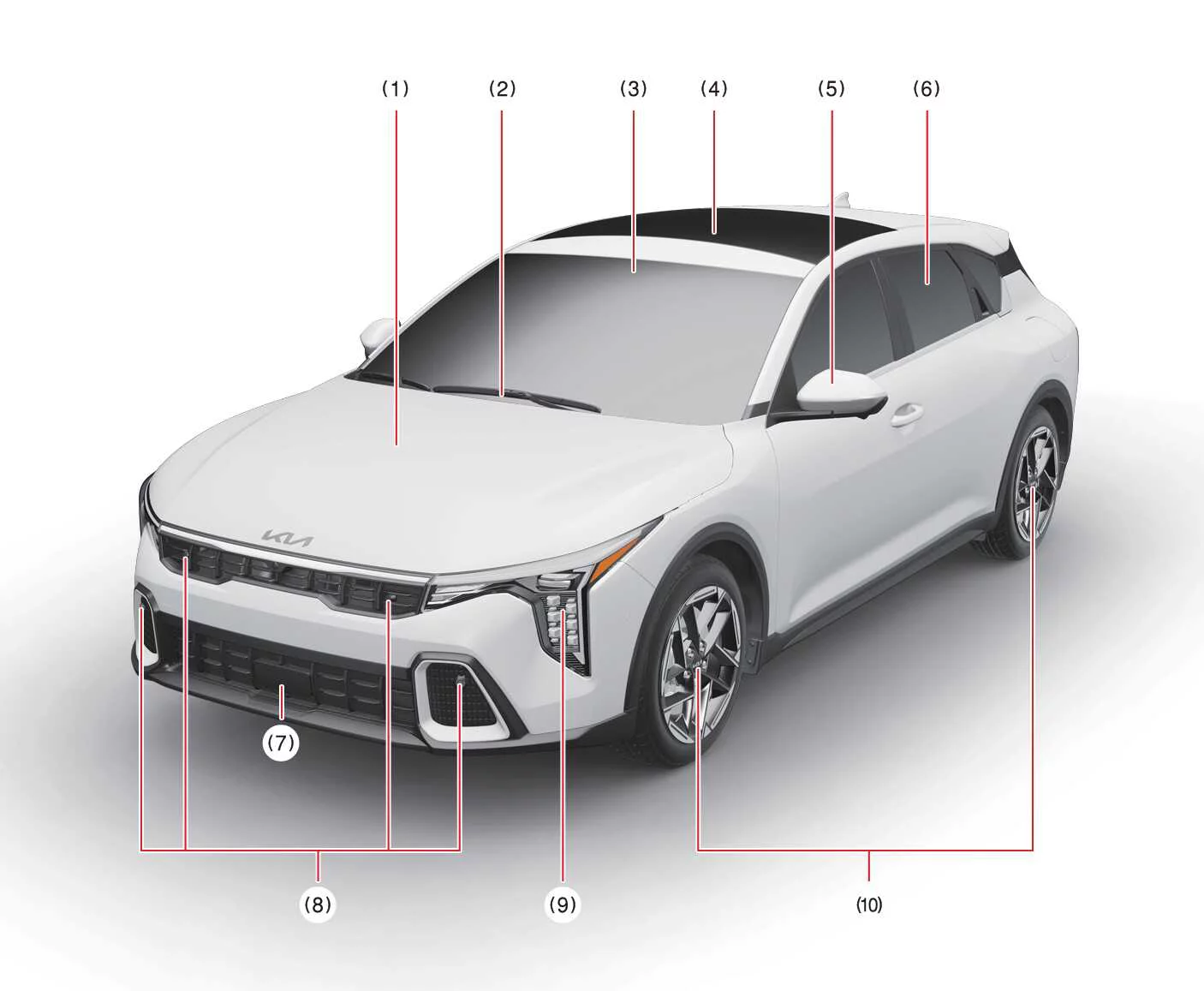

Front dynamic view of the Kia K4 GT-Line five-door hatchback model emphasizing the high-tech ultrasonic sensors and sporty alloy wheels — Figure 4. Front view (5 Door) (GT-Line)

Please note that the actual exterior shape, trim details, and specific design aesthetics of your Kia K4 may vary slightly from the schematic illustrations provided above.

Hood - Engine compartment cover
Front windshield wiper blades - Wipers, washers, and replacement blades
Front view camera - Forward Collision-Avoidance Assist (FCA) sensor system
Wide sunroof - Power operated panoramic wide sunroof
Outside rearview mirror - Heated power mirrors with integrated turn signals
Windows - Power windows and glass panels
Front radar - Smart cruise control and Forward Collision-Avoidance Assist (FCA) sensor fusion
Front ultrasonic sensors - Intelligent Parking Distance Warning system
Headlamp - LED lighting cluster and front light bulb position
Wheel and tire - Factory tires, alloy wheels, and TPMS specifications

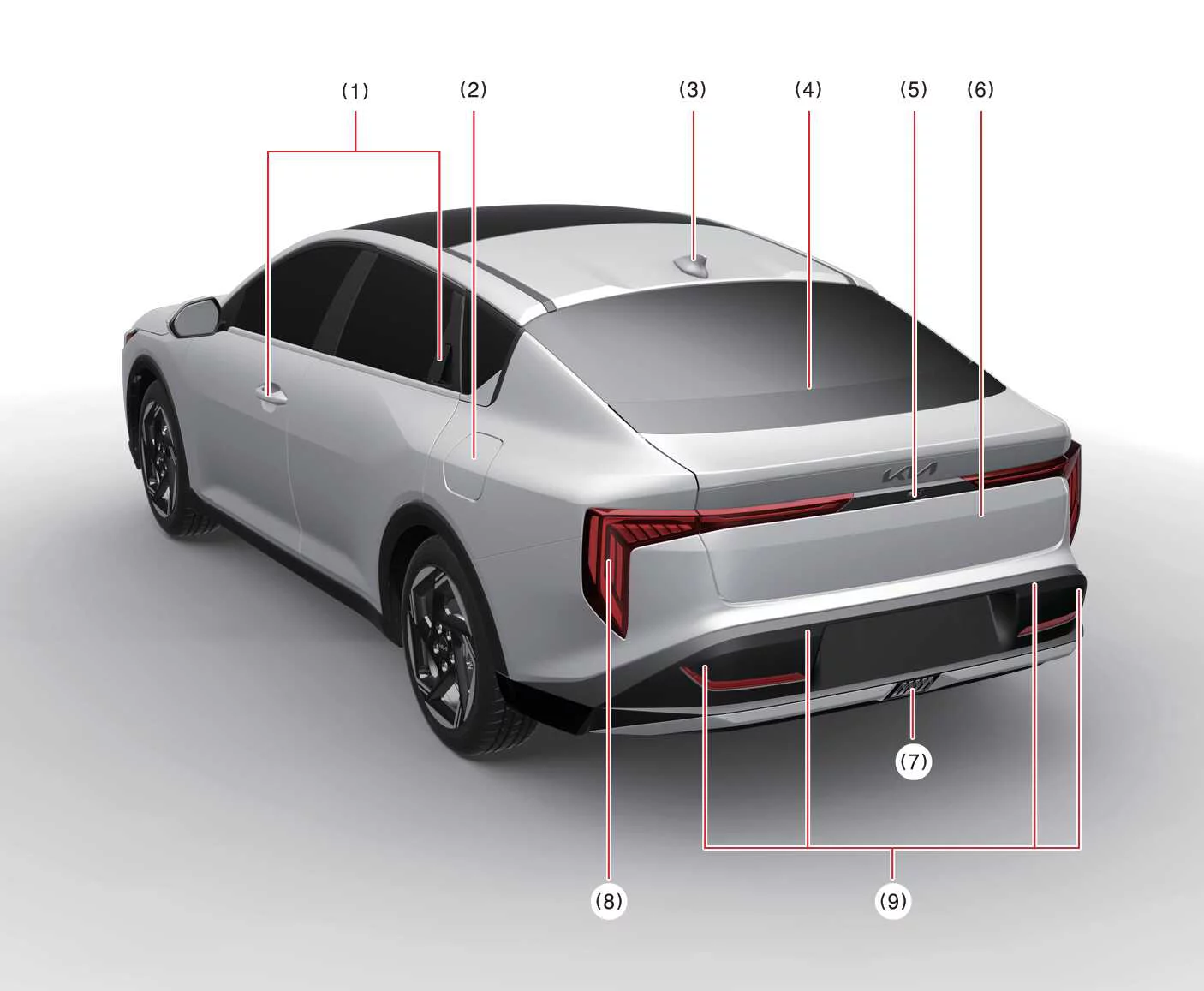

Figure 5. Rear view (4 Door)

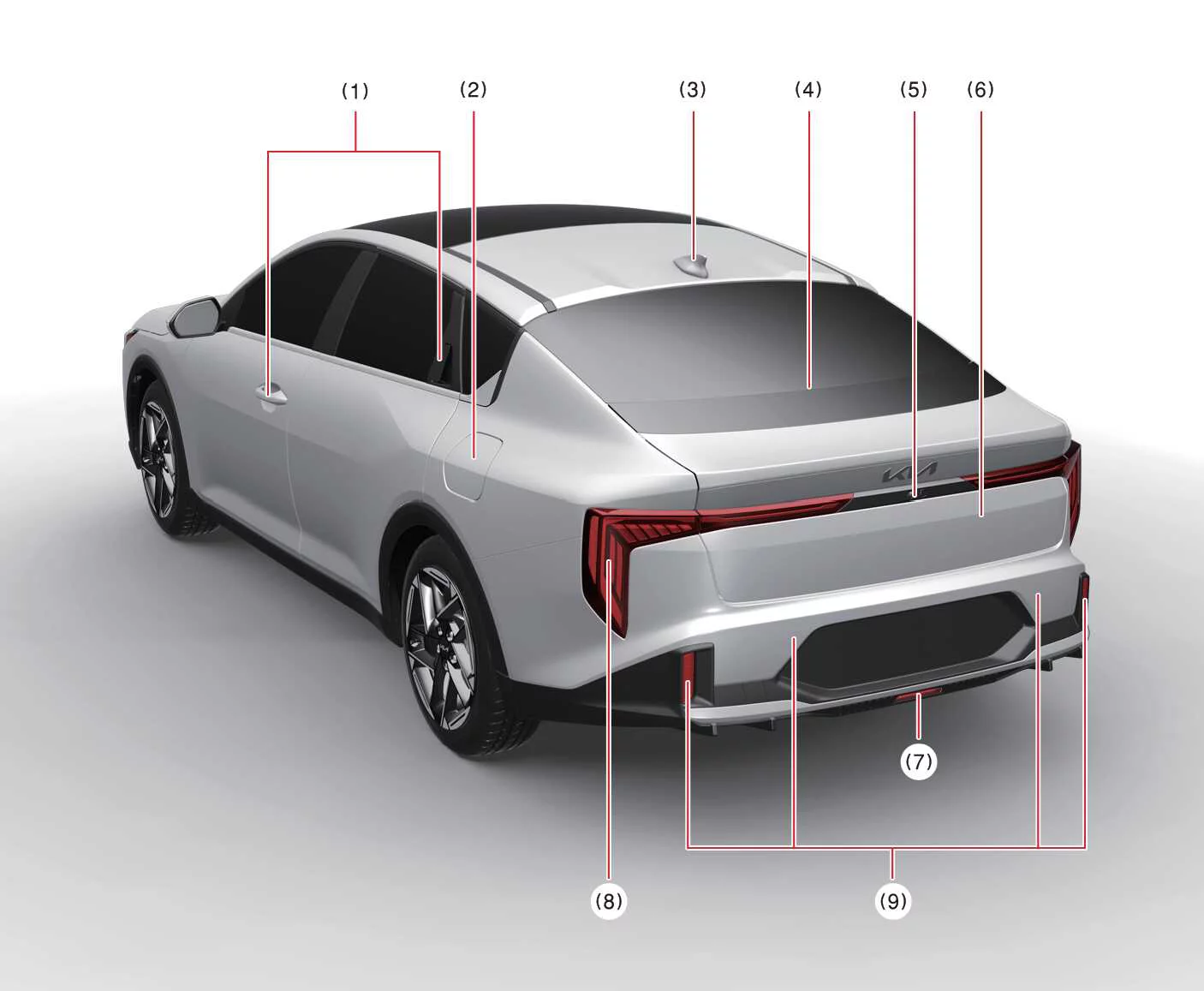

Rear view of the Kia K4 GT-Line four-door sedan featuring dual exhaust-style accents, rear combination lamps, and sport bumper trim — Figure 6. Rear view (4 Door) (GT-Line)

Rear design of the Kia K4 five-door hatchback showing the functional liftgate configuration and shark-fin antenna — Figure 7. Rear view (5 Door)

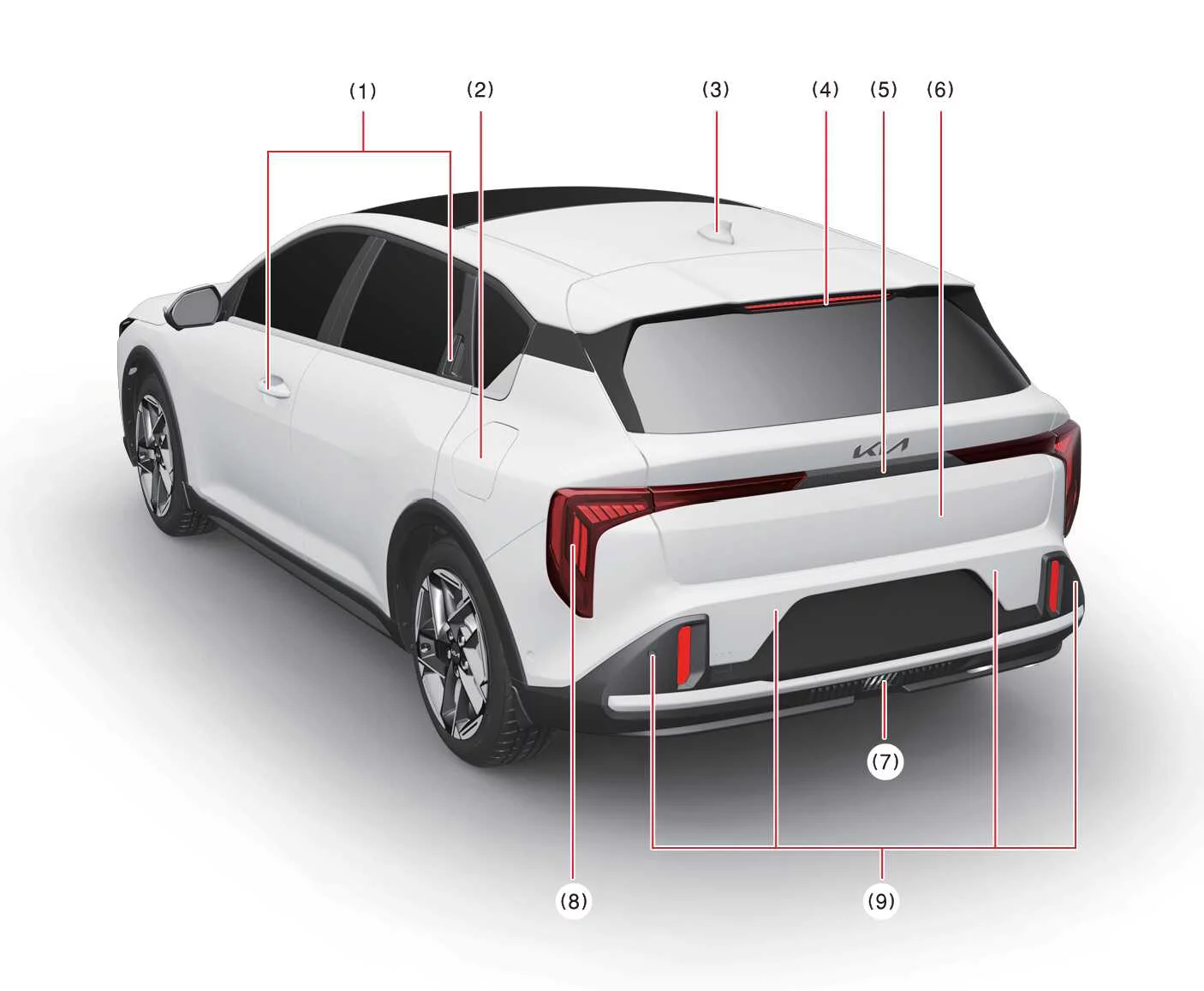

Rear view of the performance-inspired Kia K4 GT-Line five-door hatchback variant with ultrasonic safety sensors and distinct spoiler — Figure 8. Rear view (5 Door) (GT-Line)

Please note that the actual exterior shape, trim details, and specific design aesthetics of your Kia K4 may vary slightly from the schematic illustrations provided above.

Doors - Central door locking mechanism and smart entry components
Fuel filler door - Fuel cap location and remote release system
Antenna - Aerodynamic shark-fin antenna for GPS and audio reception
High mounted stop lamp - LED third brake light bulb position
Wide-rear view camera - High-definition Rear View Monitor (RVM) system
Trunk/Liftgate - Hatchback liftgate or smart trunk with auto-open convenience features
Back up lamp - Integrated reverse light bulb position
Rear combination lamp - Replacement bulbs for turn signals, tail lamps, and stop lights
Rear ultrasonic sensors - Parking Distance Warning (PDW) and Reverse Parking Collision-Avoidance Assist (PCA)

Interior overview

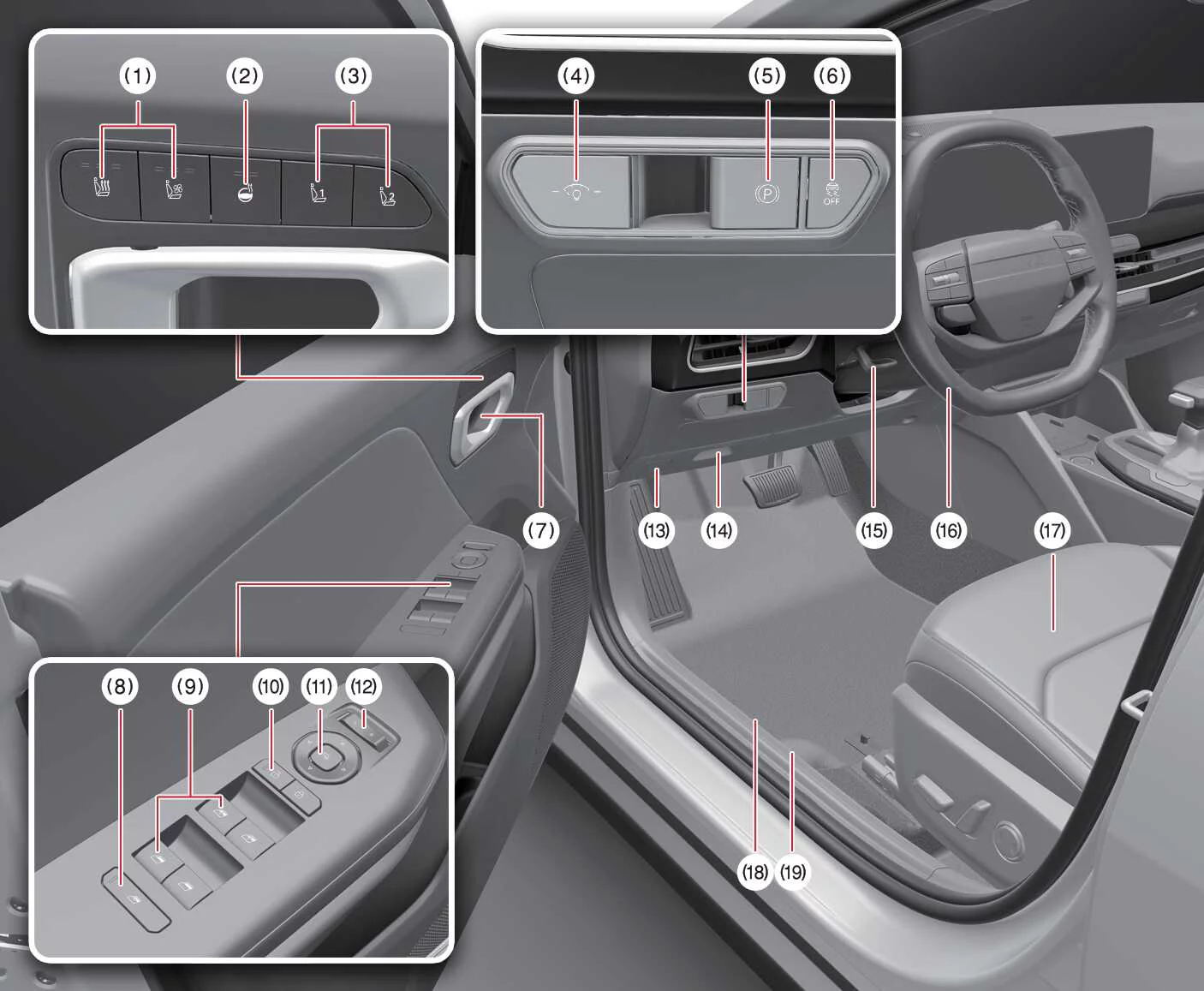

Detailed interior view of the driver side cabin in the new Kia K4 showing door controls, steering wheel layout, and driver seat adjustment switches

Please note that the actual layout, component location, and interior design aesthetics of your Kia K4 may vary slightly depending on your specific trim level and regional package specifications.

Front seat warmer and air ventilation seat buttons - Heated and ventilated climate-controlled seats
Steering wheel heater button - Heated steering wheel system
Integrated memory system - Driver position memory settings for seats and mirrors
Instrument panel illumination control switch - Rheostat adjustment for instrument cluster brightness
EPB switch - Electronic Parking Brake with automatic engagement
ESC OFF button - Electronic Stability Control disabling switch
Inside door handle - Manual door latch and interior lock control
Power window lock button - Passenger window isolation switch
Power window switches - Express up/down window operation keys
Central door lock/unlock switch - Master power door locking system
Outside rearview mirror control switch - Power side mirror angle adjustment toggle
Outside rearview mirror L/R select button - Left/Right side mirror selector switch
Hood release lever - Engine compartment hood latch release
Instrument panel fuse - Interior cabin fuse box and diagnostic panel
Tilt and telescopic steering wheel lever and switch - Manual column adjustment for reach and rake
Steering wheel - Multifunction steering wheel assembly
Seat - Ergonomic multi-way adjustable driver and passenger seats
Trunk lid release lever - Smart trunk hands-free activation or 5-door hatchback liftgate release
Fuel filler door release lever - Remote fuel flap open mechanism

Instrument panel overview

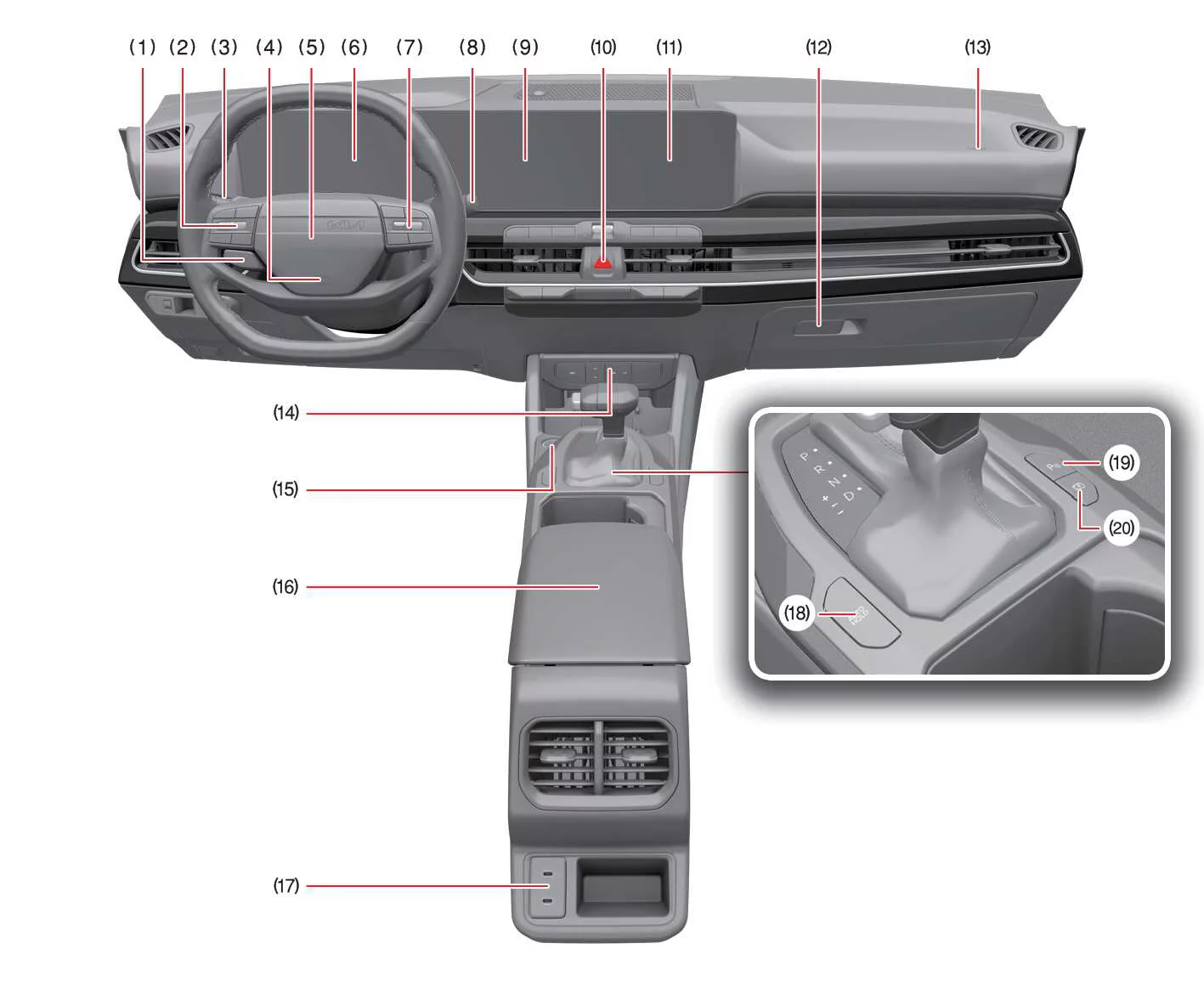

Full dashboard and instrument panel view of the Kia K4 showcasing the dual-screen infotainment system, climate controls, and central console arrangement

Please note that the actual layout, component location, and interior design aesthetics of your Kia K4 may vary slightly depending on your specific trim level and regional package specifications.

Drive mode integrated control system button - Custom drive mode selection dynamic control
Driving Assist button - Advanced Driver Assistance Systems including Lane Keeping Assist (LKA) and Smart Cruise Control (SCC)
Light control/turn signals lever - Automatic headlight control and directional turn signals
Driver’s front air bag - Supplemental Restraint System (SRS) steering wheel airbag
Horn - Audible warning signal horn
Instrument cluster - High-definition digital driver display monitor
Audio remote control button - Integrated steering wheel media and volume controls
Wiper and washer control lever - Intermittent front windshield wipers and fluid washer control
Climate control system - Multi-zone automatic climate control system
Hazard warning flasher switch - Emergency hazard lights activation button
Infotainment system - Central touchscreen display for navigation, media, and smartphone integration
Glove box - Passenger side storage compartment with lock
Passenger’s front air bag - Supplemental Restraint System (SRS) dashboard airbag
Wireless charging system/USB Charger/Power outlet - Inductive smartphone charging pad, high-speed USB-C ports, and 12V power outlet
ENGINE START/STOP button - Keyless smart key ignition switch
Center console storage box - Armrest console storage compartment
USB Charger - Dedicated data transmission and device charging USB port
AUTO HOLD button - Automatic brake hold functionality
Parking Safety button - Surround View Monitor (SVM) and active parking safety alerts
Parking/View button - Rear view monitor and camera feed selection switch

Engine Compartment Overview and Components

Proper maintenance of your Kia K4 begins with understanding what lies beneath the hood. Regular inspection of these essential components ensures optimal vehicle longevity, safety, and peak performance. Below is a comprehensive visual layout of the internal systems for both available powertrain configurations.

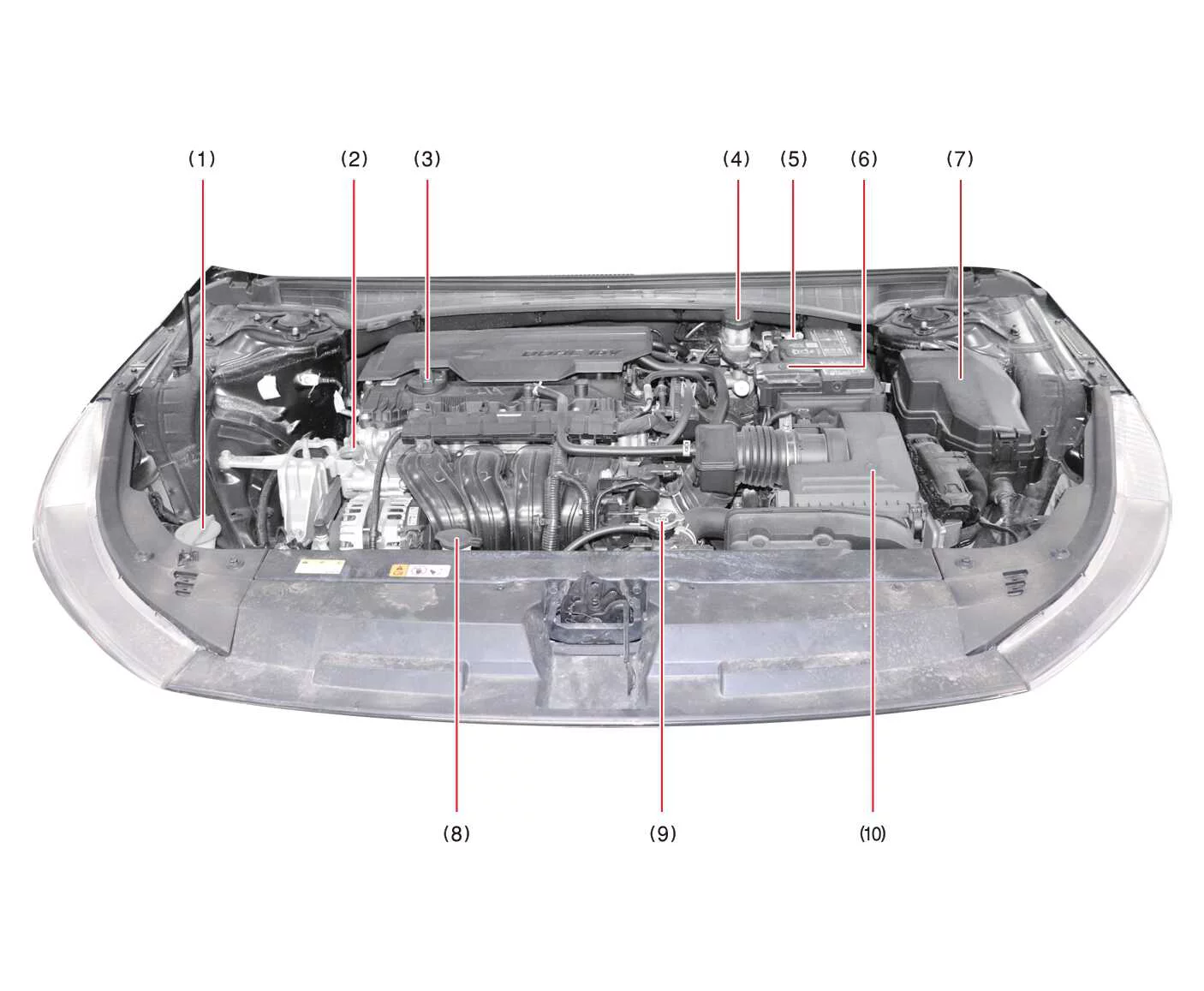

Detailed layout diagram of the Kia K4 engine compartment featuring the Smartstream G2.0 gasoline engine with highlighted maintenance points — Figure 1. Smartstream G2.0 Naturally Aspirated Engine (Gasoline) Layout

For vehicles equipped with the standard powertrain, use this reference list to identify key service areas within the Kia K4 engine bay:

Windshield washer fluid reservoir - Washer fluid tank location for windshield clearing systems
Engine oil dipstick - Manual gauge used to check manual engine oil level and oil quality
Engine oil filler cap - Removable port cap for adding fresh engine oil to the motor
Brake fluid reservoir - Master cylinder translucent reservoir tank for hydraulic brake fluid
Negative battery terminal - Grounding contact point used for vehicle jump starting and battery replacement
Positive battery terminal - Main power source connection for jump starting procedures
Fuse box - Primary engine compartment fuse panel housing vehicle electrical relays
Radiator cap - High-pressure safety cap closing off the core engine coolant loop
Engine coolant reservoir - Expansion recovery tank monitoring daily engine coolant fluid levels
Air cleaner - Main housing compartment containing the protective engine air cleaner filter

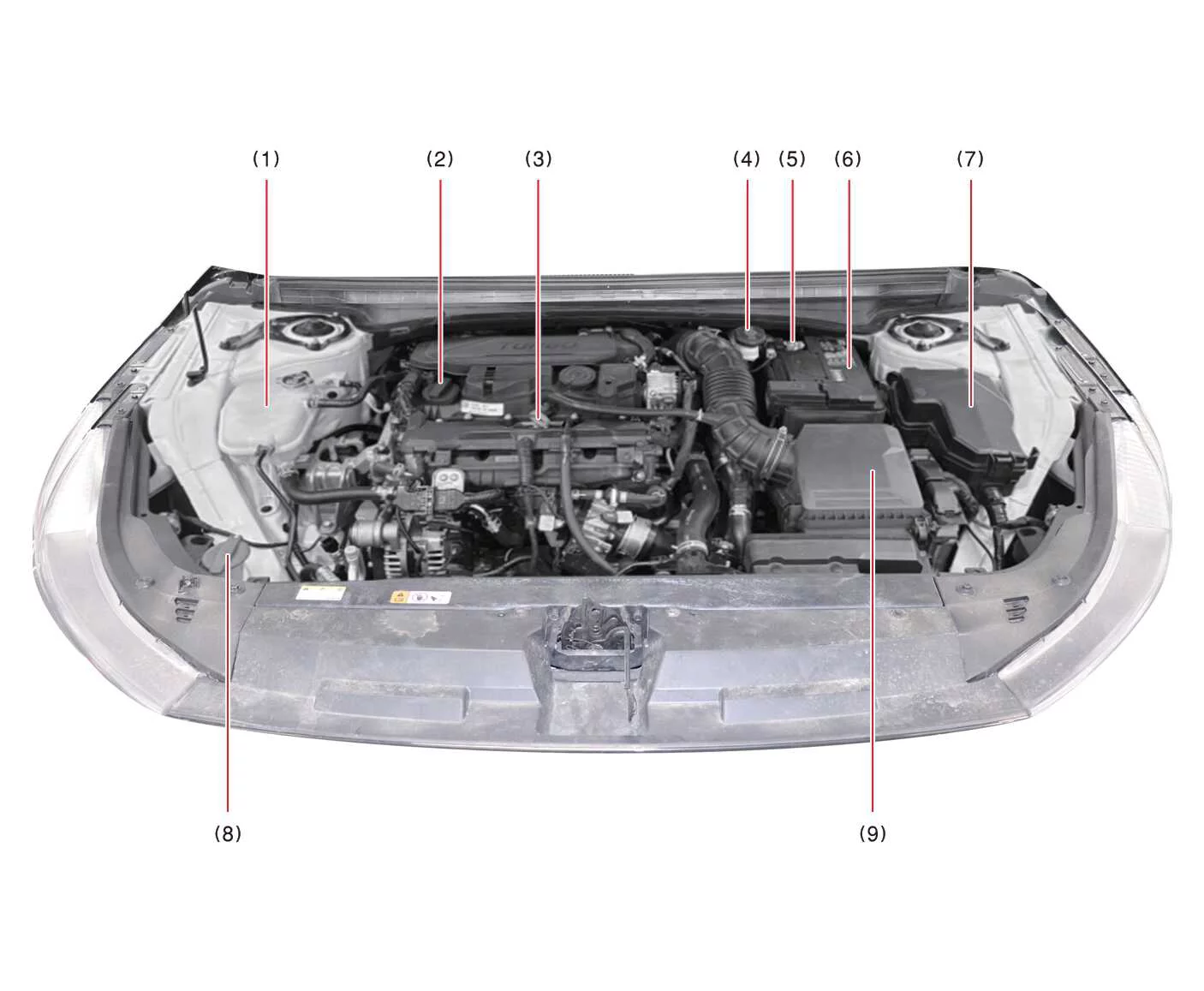

Technical diagram detailing the component locations for the turbocharged Kia K4 Smartstream G1.6 T-GDi engine bay architecture — Figure 2. Smartstream G1.6 T-GDi Turbocharged Engine (Gasoline) Layout

Please Note: The actual physical engine compartment arrangement in your specific vehicle configuration may differ slightly from these general illustrations depending on chosen regional trim packages and optional equipment installed on your Kia K4.

For turbocharged variants, please utilize the specific component schematic listed below:

Engine coolant reservoir - Main pressurized expansion tank for monitoring engine coolant
Engine oil filler cap - Dedicated top-access port for oil top-offs and regular engine oil service
Engine oil dipstick - Measurement indicator rod used to verify correct engine oil volume
Brake fluid reservoir - Hydraulic fluid containment module for the vehicle braking system
Negative battery terminal - Dedicated chassis ground contact point used during battery service or jump starting
Positive battery terminal - Main protected active terminal node for external jump starting configurations
Fuse box - Heavy-duty electrical power distribution unit and engine compartment fuse panel
Windshield washer fluid reservoir - Fluid storage compartment dedicated to the front washer fluid pump
Air cleaner - High-flow intake assembly unit sheltering the internal air cleaner filter element
