Kia K4: Air bag - Advanced Supplemental Restraint System / Occupant Detection System (ODS)

Contents:

• Main components of the Occupant Detection System (ODS)
• Conditions and operation of the front passenger Occupant Detection System (ODS)

Your new Kia K4 is equipped with an advanced Occupant Detection System (ODS) integrated directly into the front passenger’s seat to enhance safety during potential collision events.

The ODS in the Kia K4 continuously monitors the presence of a properly seated front passenger and calculates whether the passenger’s front airbag should be activated or deactivated. Please note that the ODS logic is designed specifically to control the front passenger airbag module exclusively.

For the safety of all occupants, do not place any objects, stickers, or obstructions directly in front of the PASSENGER AIR BAG OFF ( ) status indicator, as this is a vital communication link between your Kia K4 safety systems and the driver.

Main components of the Occupant Detection System (ODS)

• A sophisticated pressure and weight detection device is embedded within the Kia K4 front passenger seat cushion.

• A dedicated electronic control unit continuously evaluates sensor data to decide if the front passenger airbag should be enabled or disabled.

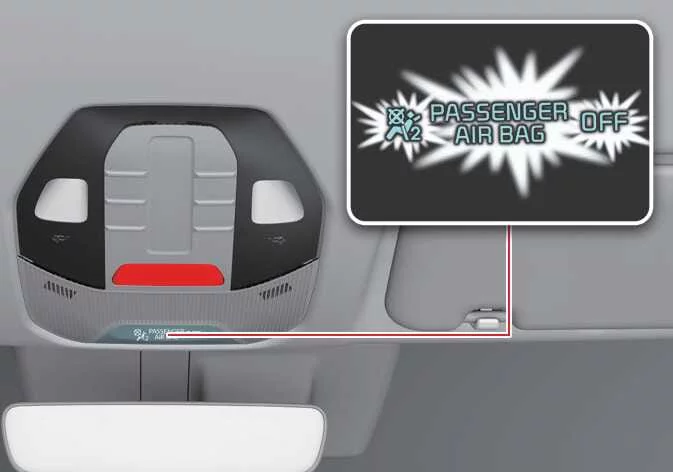

• The indicator light situated on the overhead console clearly illuminates the text PASSENGER AIR BAG OFF ( ) whenever the system determines the front passenger airbag should be deactivated.

• The overhead console airbag warning light is directly linked to the Kia K4 ODS to provide real-time status updates.

If the Kia K4 front passenger seat is occupied by a person or object that the system does not recognize as a properly seated adult—defined as sitting upright with the seatback vertical, centered on the cushion, wearing a seat belt, and with feet planted firmly on the floor—the PASSENGER AIR BAG OFF ( ) indicator will turn on. In this state, the front passenger airbag will remain inactive during a frontal collision.

You can locate the PASSENGER AIR BAG OFF ( ) indicator on the overhead console. This system manages the activation logic based on various detection conditions to ensure the Kia K4 provides the highest possible level of occupant protection.

To ensure the most effective protection from your safety belt and airbag systems, always ensure that all occupants in the Kia K4 sit upright, centered on the seat cushion, with their legs extended comfortably, feet on the floor, and safety belts fastened correctly.

The ODS in your Kia K4 may not function correctly if the passenger engages in behavior that compromises the detection system. Such actions include, but are not limited to:

• Failing to maintain an upright seated position.

• Leaning heavily against the door panel or the center console.

• Sitting on the edge of the seat cushion or towards the side rather than in the center.

• Resting legs on the instrument panel or propping feet in a way that reduces the effective weight applied to the Kia K4 passenger seat cushion.

• Wearing the safety belt improperly, such as placing the shoulder strap under the arm.

• Excessively reclining the passenger seatback while the vehicle is in motion.

Additional Note: The ODS is highly sensitive to the distribution of weight. Carrying heavy items on the seat or shifting weight significantly can cause the system to toggle the airbag status. For consistent performance, keep the front passenger seat clear of heavy cargo and maintain proper posture to allow the Kia K4 sensors to accurately interpret the occupant's status.
