Kia K4: What to do in an emergency / If you have a flat tire (with spare tire)

Contents:

• Jack and tools
• Removing and storing the spare tire
• Important - use of compact spare tire
• Jack label

If you encounter a flat tire while driving your Kia K4, you can utilize the onboard emergency tools to replace the damaged tire with the spare tire stored in your vehicle.

WARNING

CAUTION

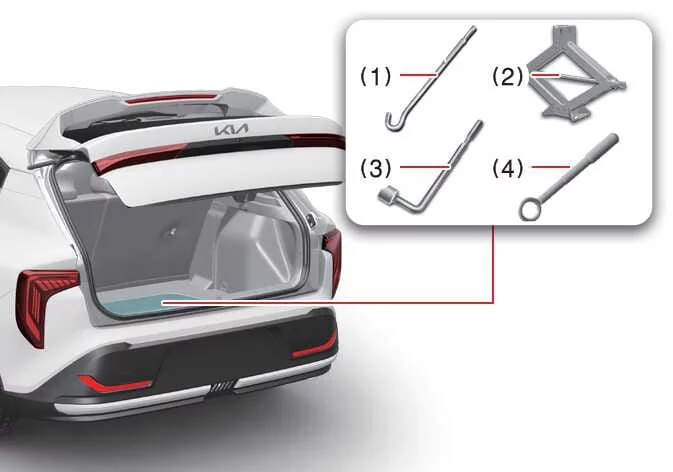

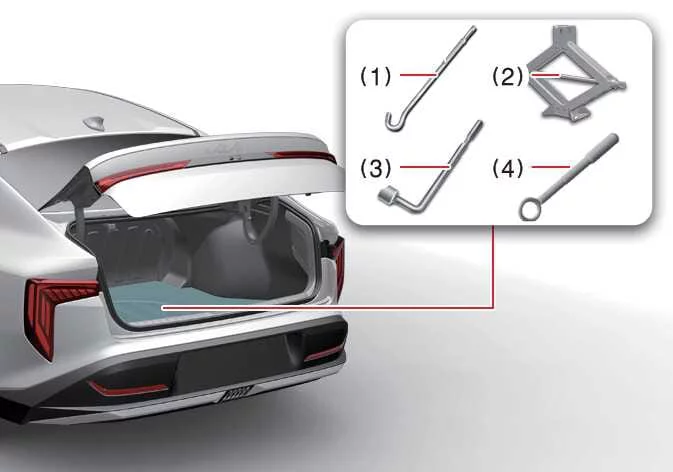

Jack and tools

1. Jack handle

2. Vehicle jack

3. Wheel lug nut wrench

4. Towing hook

The jack and associated tools for your Kia K4 are stored within the luggage compartment trim. To access them, carefully remove the tray cover as indicated in the vehicle illustration.

Jacking instructions

The provided jack is intended exclusively for emergency tire changes on your Kia K4.

• Ensure the jack and tools are properly secured in their designated storage location to prevent rattling or damage while the vehicle is in motion.

• To reduce the possibility of personal injury, follow these established jacking procedures:

  WARNING

  Changing tires

  • Never attempt vehicle repairs, including tire changes, in active traffic lanes of a public road or highway.

  • Always move the Kia K4 completely off the road and onto a stable, level shoulder before changing a tire. If you cannot find firm, level ground, contact a professional towing service for assistance.

  • Always use the specific front and rear jacking points designed for the Kia K4. Never place the jack under the bumpers or any non-reinforced body panels.

  • Failure to properly secure the vehicle may cause it to roll off the jack, potentially resulting in serious injury or death.

  • Never go underneath a vehicle supported only by a jack.

  • Do not start or run the engine while the vehicle is raised on the jack.

  • Do not allow any occupants to remain inside the Kia K4 while it is elevated.

  • Ensure all children remain in a secure area, well away from the road and the vehicle, throughout the process.

  WARNING

  Tire jack

  Never put any part of your body under a vehicle that is supported solely by a jack. If you must perform work under the vehicle, always use approved vehicle support stands.

  WARNING

  Changing tires

  Never attempt emergency vehicle repairs in the path of oncoming traffic.

  WARNING

  Running vehicle on jack

  Do not start or run the engine while your Kia K4 is on the jack, as vibrations may cause the vehicle to fall.

Always ensure the jack is securely stored after use to prevent noise and damage to the luggage area trim.

TIP

Removing and storing the spare tire

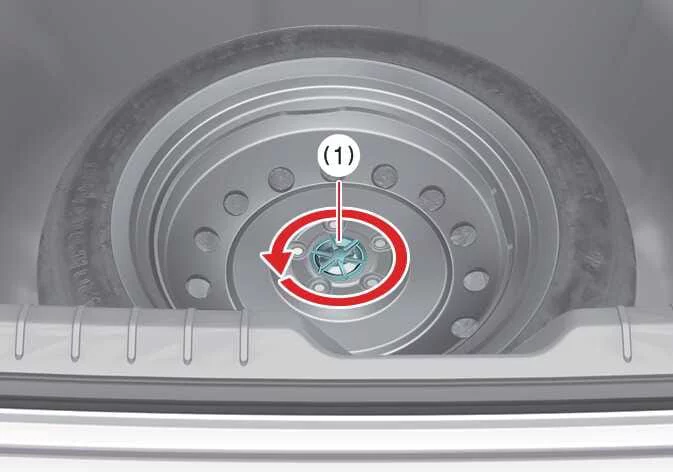

1. To access the spare tire, locate and turn the tire hold-down wing bolt (1) in a counterclockwise direction until it is fully removed.

2. To store the tire back in your Kia K4, follow these steps in the exact reverse order of removal, ensuring it is securely fastened.

3. Properly store the spare tire and all emergency tools to prevent "rattling" or movement while your Kia K4 is in motion.

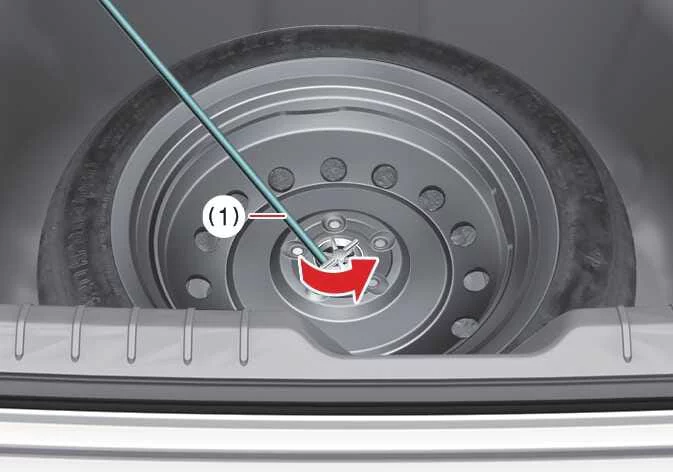

If the tire hold-down wing bolt is tightened securely and difficult to loosen by hand, you can easily release it using the provided jack handle.

1. Insert the flat end of the jack handle (1) into the slot of the tire hold-down wing bolt.

2. Turn the wing bolt counterclockwise using the jack handle. Please use extreme caution, as the jack handle may have sharp edges.

WARNING

Important - use of compact spare tire

Your Kia K4 may be equipped with a compact spare tire. This space-saving design is smaller than a conventional tire and is engineered strictly for temporary emergency use.

• Drive with extra caution whenever the compact spare is in use. It is recommended to have your original full-size tire repaired or replaced and reinstalled as soon as possible.

• For safety reasons, do not operate the Kia K4 with more than one compact spare tire installed at the same time.

WARNING

The compact spare tire in your Kia K4 should be maintained at an inflation pressure of 60 psi (420 kPa).

NOTE

When using a compact spare tire, you must observe the following critical precautions:

• Under no circumstances should you exceed 50 mph (80 km/h), as higher speeds can cause catastrophic tire failure.

• Drive slowly and remain vigilant; any road hazard, such as a deep pothole or sharp debris, could cause severe damage to the compact spare.

• Continuous or long-distance use could result in tire failure, loss of vehicle control, and potential injury.

• Do not exceed your Kia K4's maximum load rating or the load capacity printed on the sidewall of the compact spare tire.

• Avoid driving over obstacles. The compact spare's smaller diameter reduces ground clearance by approximately 1 inch (25 mm), which may cause underbody damage.

• Do not attempt to pass through an automatic car wash while the compact spare tire is installed.

• Do not use the compact spare tire on any other vehicle, as it is designed specifically for the unique requirements of your Kia K4.

• The tread life of the compact spare is significantly shorter than a standard tire. Inspect it regularly and replace it with a unit of the same size and design if the tread is worn.

• Do not combine the compact spare with any other wheel types. Do not use standard tires, winter/snow tires, or trim rings alongside the compact spare, as this can damage vehicle components.

• Never install more than one compact spare tire on your Kia K4 at any given time.

• Do not tow a trailer while the compact spare tire is installed on your vehicle.

Jack label

Please note that the specific design and layout of the emergency jack label in your particular Kia K4 may vary slightly from the illustration provided above. Always refer to the physical label affixed to your vehicle's jack assembly for the most accurate and up-to-date technical specifications, which include:

1. Exact Model Name of the jack unit.

2. Maximum allowable load capacity.

3. Mandatory requirement to engage the parking brake before operation.

4. Mandatory requirement to stop the engine before operation.

5. Strict prohibition against positioning your body under a vehicle supported solely by a jack.

6. Instruction to utilize only the designated jack-lift locations identified on the Kia K4 frame.

7. Requirement that the jack's base plate must be positioned vertically and securely under the lift point.

8. Requirement to shift the transmission into P (Park) before commencing.

9. Mandatory use on firm, stable, and level ground surfaces.

10. Identification of the jack manufacturer.

11. Date of production for tracking.

12. Details of the representative company and their contact address.
