Kia K4: Fuses / Engine compartment fuse replacement

Contents:

• Main fuse (multi-fuse)

For fuses located within the engine compartment fuse panel of your Kia K4, follow these maintenance steps:

1. Verify that the ENGINE START/STOP button and all vehicle systems are in the OFF position.
2. Open the engine compartment and remove the fuse panel cover by depressing the retaining tabs and lifting the cover upward.
3. Use the integrated fuse puller located inside the engine compartment fuse panel to extract the suspected fuse.
4. Examine the fuse element. If it is blown, use the puller to insert a new fuse of the exact same rating.
5. Ensure the replacement fuse is seated firmly in the clips. If the fit is loose, seek professional assistance from an authorized Kia dealer.

   NOTE

   After inspecting or replacing fuses, ensure the engine compartment fuse panel cover is snapped securely back into place. You should hear an audible "click" confirming the seal; if not properly secured, moisture or water ingress could cause severe electrical failures in your Kia K4.

   TIP

   If a multi-fuse assembly is blown, do not attempt to replace it yourself; please consult an authorized Kia dealer for specialized repair.

   NOTE

   If your Kia K4 exhibits electrical malfunctions despite all individual fuses being intact, the main "BFT" type fuse—located under the positive battery terminal (+) cap—may be disconnected or blown. Because this main fuse is engineered with complex integrated safety features, it requires professional replacement at an authorized Kia dealer.

Main fuse (multi-fuse)

The main multi-fuse is a critical component that protects the primary power distribution circuits of your Kia K4. If you suspect this high-amperage fuse is blown, please follow the professional replacement procedure outlined below. Due to the high current handled by this component, it is essential to perform this task with caution.

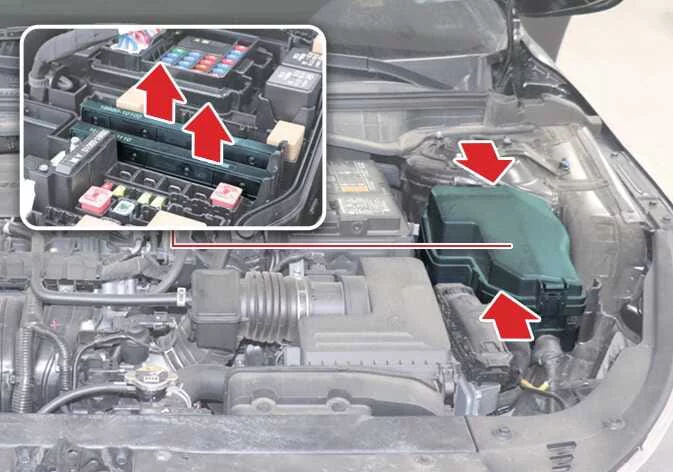

Main multi-fuse location and mounting points

If the main multi-fuse for the Kia K4 is blown, follow these steps to safely remove and replace it:

1. Ensure the ENGINE START/STOP button is fully deactivated in the OFF position and the vehicle's electrical system is completely powered down.
2. Disconnect the negative (-) battery cable to prevent any accidental short circuits during the replacement process.
3. Carefully remove the mounting nuts highlighted in the diagram above to release the fuse assembly.
4. Replace the damaged multi-fuse with a new, genuine Kia replacement part of the exact same amperage rating. Never substitute with a different capacity.
5. Reinstall the new fuse by following the removal steps in reverse order, ensuring all nuts are tightened to the correct specification to prevent poor electrical contact.

NOTE
