Kia K4: What to do in an emergency / Emergency starting
Contents:
If your Kia K4 fails to start due to a depleted 12V battery, you may need to perform an emergency jump start to restore power and begin your journey.
Jump starting
To safely jump start your Kia K4, connect the jumper cables in the exact numerical sequence illustrated below. When disconnecting, reverse the order to ensure safety:
|
|
Jump starting a Kia K4 can be hazardous if performed incorrectly. To prevent personal injury or damage to your vehicle's sensitive electrical systems and battery, strictly adhere to the procedures outlined in this manual. If you have any doubt regarding your ability to safely execute these steps, please contact a professional technician or a qualified towing service to jump start your Kia K4.
WARNING
-
Do not attempt to jump start the Kia K4 if the discharged battery is frozen; doing so may cause the battery case to rupture or explode.
-
Never attempt to inspect or check the electrolyte level of the battery, as opening the casing may cause it to rupture or release hazardous materials.
-
Maintain a safe distance from all flames, cigarettes, or potential ignition sources. Automotive batteries produce hydrogen gas, which is highly flammable and can cause a violent explosion if exposed to sparks or open flames.
-
Failure to follow these instructions precisely may result in serious personal injury or costly damage to your Kia K4. Automobile batteries contain sulfuric acid, which is both poisonous and highly corrosive. Always wear protective safety glasses, and exercise extreme caution to prevent contact with your skin, clothing, or the vehicle’s painted surfaces.
-
Never allow the (+) and (-) jumper cable clamps to touch one another while connected to a power source, as this will result in dangerous electrical arcing and sparks.
-
Do not connect the jumper cable directly from the negative terminal of the booster battery to the negative terminal of the discharged battery. This bypass connection can cause the discharged battery to overheat, crack, or degrade. Always connect the negative jumper cable to a solid, unpainted metallic ground point on the engine block or chassis, situated at a safe distance from the battery.
-
Always ensure the booster vehicle and your Kia K4 are not touching, as an unintended ground path could cause electrical system damage.
NOTE
Always use a 12V jumper system when assisting a Kia K4 with a depleted battery. The electrical architecture of the Kia K4 is designed for 12V operation; using a 24V power supply—such as two 12V batteries connected in series or a 24V motor-generator set—will cause catastrophic and irreparable damage to the starting motor, the sophisticated ignition system, and various sensitive electronic control modules.
Jump starting instructions
-
Confirm that the booster battery is a standard 12V unit and that its negative terminal is properly grounded. If you are using another vehicle to assist your Kia K4, ensure that the two vehicles are parked close enough for the cables to reach, but strictly verify that the vehicle bodies do not come into physical contact, as this can create an unintended ground path.
-
Before beginning the jump start process, turn off all unnecessary electrical loads in the Kia K4, such as the infotainment system, climate control, and exterior lighting, to maximize the current available for cranking the engine.
-

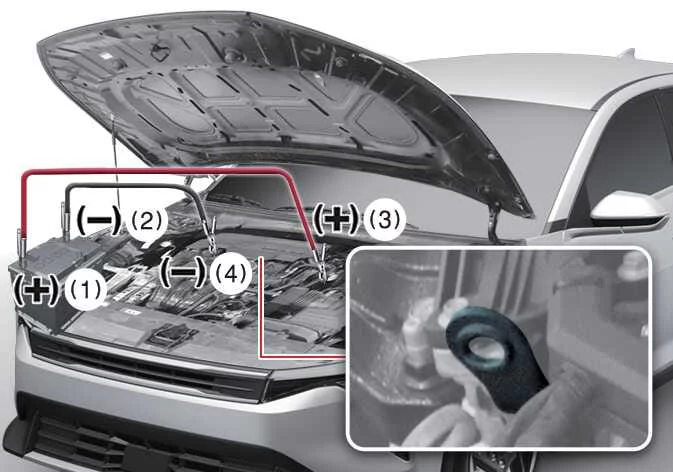

Connect the jumper cables in the precise sequence shown in the illustration below:
-
Connect one end of the positive (+) jumper cable to the positive (+) terminal of the discharged battery in your Kia K4 (3).
-
Connect the other end of that same positive (+) cable to the positive (+) terminal of the booster battery (1).
-
Connect one end of the negative (-) jumper cable to the negative (-) terminal of the booster battery (2).
-
Connect the remaining end of the negative (-) cable to a suitable ground: a solid, stationary, unpainted metallic point on the Kia K4 engine block or chassis (such as the engine lifting bracket), ensuring it is kept away from the battery itself (4).
Crucially, ensure that jumper cables do not contact anything other than their intended terminals or the specified ground point. Never lean directly over the battery when making these final connections.
-
-
If utilizing another vehicle to jump start your Kia K4, start the booster vehicle first and allow its engine to run at approximately 2,000 rpm for several minutes to build up a sufficient surface charge.
-
Attempt to start the Kia K4 with the discharged battery.
-
Once the Kia K4 successfully starts, carefully disconnect the cables in the exact reverse order: first, remove the negative (-) cable from the booster battery (2), then remove the positive (+) cable from the booster battery (1), and finally, remove the positive (+) cable from the Kia K4 battery (3).
If the cause of the battery discharge is not immediately apparent, it is highly recommended that you have the electrical system of your Kia K4 inspected by an authorized Kia dealer to prevent future roadside issues.
Push starting
The Kia K4 is equipped with an Intelligent Variable Transmission (IVT) or an advanced automatic transmission; therefore, the vehicle can only be started using the jump starting method. Under no circumstances should you attempt to push start the Kia K4, as this procedure is ineffective and may cause severe internal damage to the transmission system.
Please refer to the "Jump starting" section of your owner's manual for the correct procedure.
WARNING
Tow starting the vehicle
Never attempt to tow start your Kia K4. Once the engine suddenly ignites during a tow start, the vehicle may surge forward unexpectedly, creating an uncontrollable situation that could lead to a collision with the towing vehicle or other hazards.
