Kia EV6: Switching between panels / Manual heating and air conditioning (A/C) operation

Contents:

• Mode selection

The Kia EV6 heating and cooling system can also be operated manually by using the climate control buttons and knobs instead of the AUTO mode.

When manual mode is selected, the Kia EV6 climate system responds sequentially according to the order in which the buttons or control knobs are adjusted.

1. Start the Kia EV6 electric vehicle.

2. Select the desired air flow mode position.

   For improved Kia EV6 heating and cooling performance:

   • Heating:

   • Cooling:

3. Adjust the Kia EV6 cabin temperature to the preferred setting.

4. Select the external fresh air intake mode.

5. Adjust the fan speed to the desired level.

   If air conditioning is required, activate the Kia EV6 A/C system.

Press the AUTO button at any time to return the Kia EV6 climate control system to full automatic operation.

Mode selection

The Kia EV6 mode selection button controls the direction and distribution of air flow through the ventilation system.

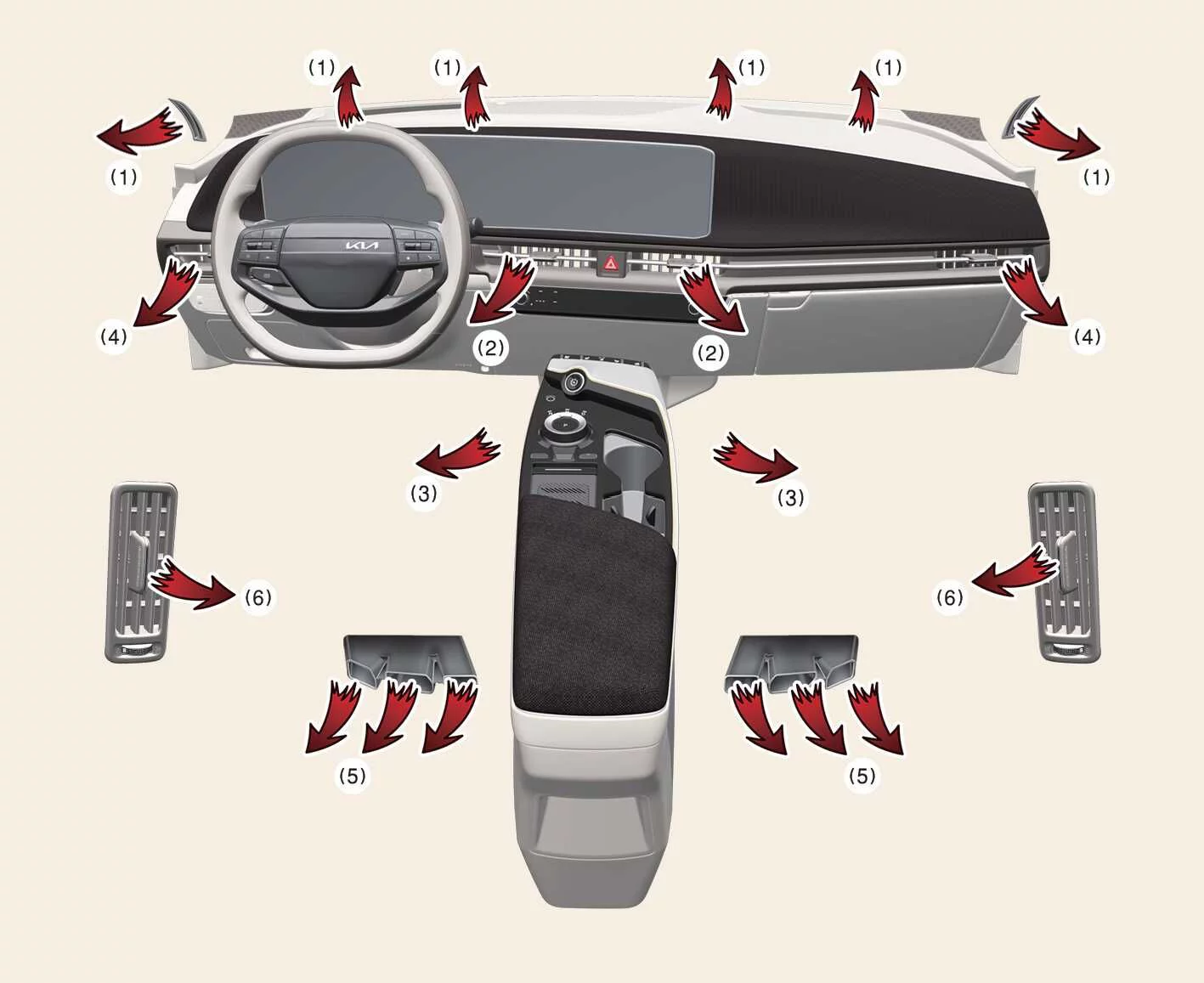

The Kia EV6 air flow outlet ports are directed as follows:

Face-Level (2, 4, 6)

Air flow is directed toward the upper body and face area. The direction of air flow from each Kia EV6 vent can be adjusted individually for improved comfort.

Bi-Level (2, 3, 4, 5, 6)

Air flow is distributed toward both the upper body and the floor area of the Kia EV6 cabin.

Floor-Level (1, 3, 4, 5)

Most of the Kia EV6 air flow is directed toward the floor area, while a smaller amount of air is directed toward the windshield and side window defrosters.

Floor/Defrost-Level (1, 3, 4, 5)

Most of the air flow is directed toward the floor and windshield, while a smaller amount is directed toward the side window defrosters for enhanced visibility.
