Kia EV6: Maintenance / Light bulbs

Kia EV6 2022-2026 Owner's Manual / Maintenance / Light bulbs

Contents:

The Kia EV6 is equipped with lighting units positioned throughout the vehicle to illuminate the road, enhance interior visibility, and improve communication with surrounding traffic. These lighting systems contribute significantly to driving safety, visibility, and overall vehicle functionality.

Bulb replacement precautions

It is recommended that Kia EV6 owners keep spare replacement bulbs with the correct wattage specifications available for emergency situations. Having approved replacement bulbs readily accessible can help minimize inconvenience and maintain safe vehicle operation.

For detailed specifications, refer to the Bulb Wattage section of the Kia EV6 manual.

Before replacing any lamp, park the Kia EV6 in a safe location, switch the vehicle completely off, securely engage the parking brake, and disconnect the battery negative (-) terminal. These precautions help protect both the vehicle's electrical system and the person performing maintenance.

WARNING

Working on the Lights

Before servicing any exterior or interior lighting component on the Kia EV6, make sure the parking brake is firmly applied, verify that the EV button is set to the OFF position, and switch off all lamps. Failure to follow these precautions may result in unexpected vehicle movement, electrical shock, or burns caused by hot lighting components.

Always install bulbs that match the manufacturer-specified wattage and electrical requirements for the Kia EV6.

CAUTION

Light Replacement

Replace failed bulbs only with identical replacements of the same wattage. Installing an incorrect bulb may overload electrical circuits, damage wiring, or cause fuse failures within the Kia EV6 electrical system.

CAUTION

Headlamp Lens

To preserve the appearance and optical performance of the Kia EV6 headlamp assemblies, avoid using aggressive chemicals, solvents, or highly concentrated cleaning agents on the lens surfaces. These products may cause discoloration, cracking, or reduced transparency.

NOTE

  • If a bulb or lamp connector is disconnected while the lighting system remains active, the electronic monitoring system of the Kia EV6 may interpret the event as a malfunction. In some situations, the occurrence may be stored as a Diagnostic Trouble Code (DTC) within the vehicle's control system.

  • Momentary flickering during lamp operation can occur as part of the stabilization process managed by the vehicle's electronic control units. This brief blinking is considered normal when the lamp subsequently operates correctly.

    If the lamp repeatedly flickers, behaves inconsistently, or switches off completely, an electrical or control-system fault may be present. The Kia EV6 should be inspected by an authorized Kia dealer as soon as possible.

NOTE

Following any collision repair or reinstallation of a headlamp assembly, have the Kia EV6 lighting system inspected by an authorized Kia dealer to verify proper alignment and operation.

NOTE

Moisture or condensation may occasionally appear inside lamp lenses after washing the Kia EV6 or driving in rainy weather. This condition is generally caused by temperature differences between the inside and outside of the lamp housing and is considered normal. In most cases, the moisture will gradually disappear while driving with the headlamps illuminated. If excessive moisture remains trapped for an extended period, have the lighting assembly inspected by an authorized Kia dealer.

If you do not have the appropriate tools, replacement components, or technical experience, Kia recommends consulting an authorized service center. Many Kia EV6 lighting components require the removal of surrounding trim panels or complete lamp assemblies before the bulb can be accessed.

Improper removal or installation procedures may damage surrounding vehicle components. To maintain reliability and performance, use only genuine Kia EV6 replacement parts and approved lighting components.

Additional aftermarket lamps, unauthorized LED conversions, or non-approved lighting accessories should not be installed. Such modifications may cause flickering, system errors, fuse failures, or damage to the vehicle's wiring harness and electronic control systems.

Light position (Front)

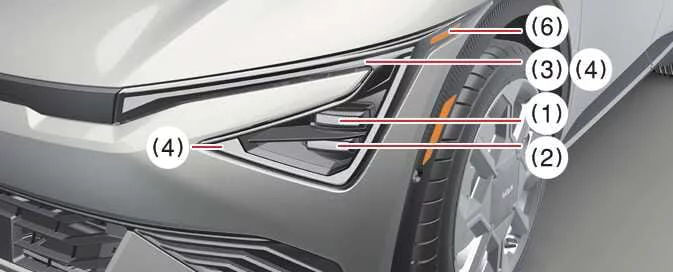

Figure 1. Type A
Kia EV6 front lighting system layout Type A with LED lamp positions

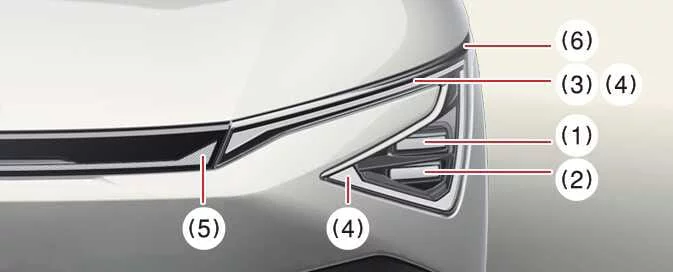

Figure 2. Headlamp – Type B
Kia EV6 front headlamp assembly Type B showing LED light locations

  1. Headlamp (Low) (LED type)

  2. Headlamp (High) (LED type)

  3. Front turn signal lamp (LED type)

  4. Day time running lamp/Position lamp (LED type)

  5. Front center lamp (if equipped)

  6. Front side marker

If any LED lighting component fails to operate correctly, the Kia EV6 should be inspected by an authorized Kia dealer.

Because the front LED lighting units are integrated assemblies, individual LEDs cannot be replaced separately. Replacement requires installation of the complete lighting module.

Inspection and repair of LED lighting systems should only be performed by qualified technicians to prevent damage to related electronic and lighting components.

Light position (Rear)

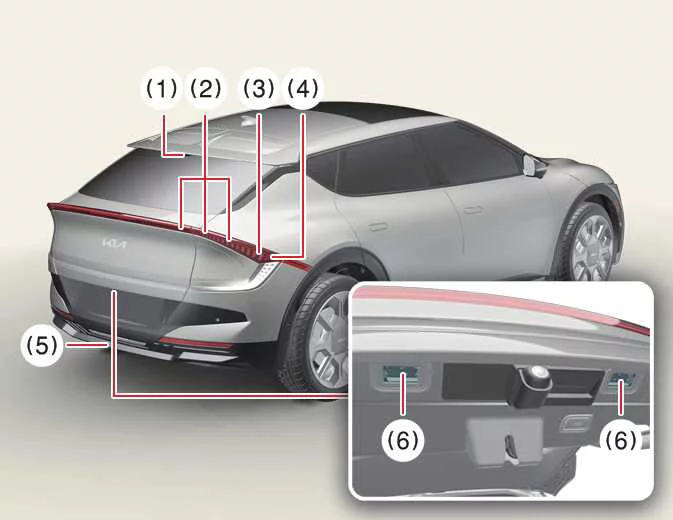

Kia EV6 rear LED lighting layout showing tail lamps and signal lamps

  1. High mounted stop lamp (LED type)

  2. Tail lamp (LED type)

  3. Tail lamp/Stop and Tail lamp/Rear turn signal lamp (LED type)

  4. Rear side marker

  5. Backup lamp (LED type)

  6. License plate lamp (LED type)

CAUTION

Exercise caution whenever opening or closing the liftgate of the Kia EV6. Sharp edges and moving components may cause injury or damage if body parts or objects come into contact with the liftgate area. Special attention should be given when children are nearby, as accidental contact may result in injury.

Replacing lights (LED type, except glove box lamp)

If an LED lighting component stops functioning, have the Kia EV6 inspected by an authorized Kia dealer. Since the LED assemblies are integrated units, individual LEDs are not serviceable separately.

The entire LED lamp assembly must be replaced as a complete unit to restore proper operation and maintain factory performance standards.

Glove box lamp (Bulb type)

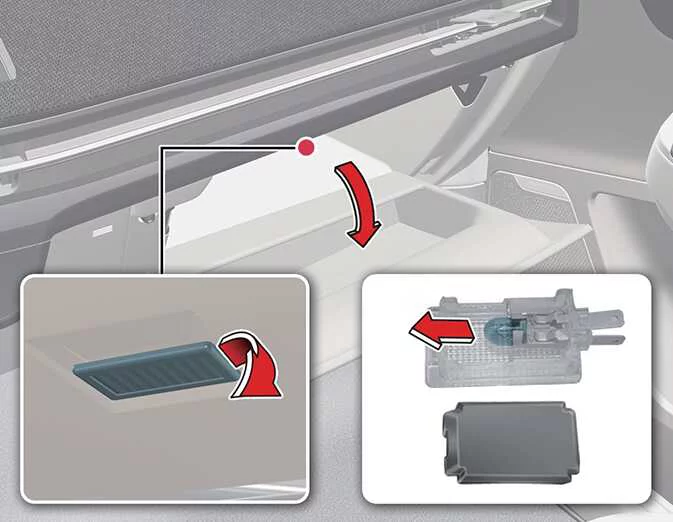

Kia EV6 glove box lamp bulb replacement procedure

  1. Using a flat-blade screwdriver, carefully release and remove the lamp assembly from the interior trim.

  2. Detach the protective cover from the lamp assembly.

  3. Remove the existing bulb by pulling it straight out of the socket.

  4. Insert a new bulb of the correct specification into the socket.

  5. Reinstall the cover onto the lamp assembly.

  6. Securely reinstall the lamp assembly into the interior panel.

WARNING

Before servicing any interior lighting component in the Kia EV6, ensure the EV button is set to the OFF position. This precaution helps prevent burns from hot components and reduces the risk of electrical shock during maintenance.

Replacing high mounted stop lamp (LED type)

Kia EV6 high mounted LED stop lamp replacement and service location

If the high-mounted stop lamp (LED) on your Kia EV6 fails to illuminate or operates incorrectly, the lighting system should be inspected by an authorized Kia dealer as soon as possible. The high-mounted stop lamp is an important safety component that improves vehicle visibility during braking and helps alert following drivers to changes in speed.

Unlike conventional bulb-based lighting systems, the Kia EV6 uses an advanced integrated LED assembly. Because of this design, individual LEDs cannot be removed or replaced separately. If a malfunction occurs within the unit, the complete high-mounted stop lamp assembly must be replaced to restore proper functionality and maintain factory lighting performance.

To ensure the reliability and safety of your Kia EV6, all inspections and repairs should be performed by qualified technicians using approved replacement components. Improper servicing may result in damage to surrounding trim panels, electrical connectors, or vehicle control systems. Genuine Kia EV6 replacement parts are specifically engineered to provide optimal durability, visibility, and long-term performance.

Regular inspection of all exterior lighting components can help maintain maximum road safety and ensure your Kia EV6 continues to meet visibility requirements under various driving conditions.
